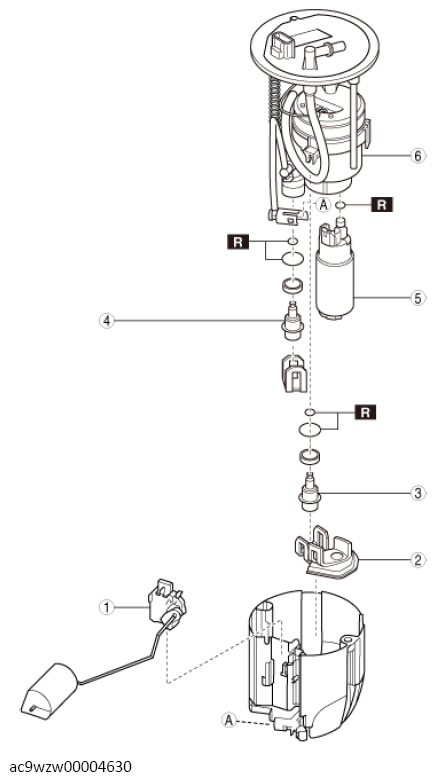

Fuel Pump Unit Disassembly/Assembly: 2WD
COMPONENT DESCRIPTION
| 1 | Fuel gauge sender unit |
| 2 | Fuel filter (low-pressure) |
| 3 | Relief valve (See RELIEF VALVE INSTALLATION NOTE .) |
| 4 | Check valve (See CHECK VALVE INSTALLATION NOTE .) |
| 5 | Fuel pump |
| 6 | Fuel filter (high-pressure) |
