Fuel Pump Unit Removal/Installation: 2WD

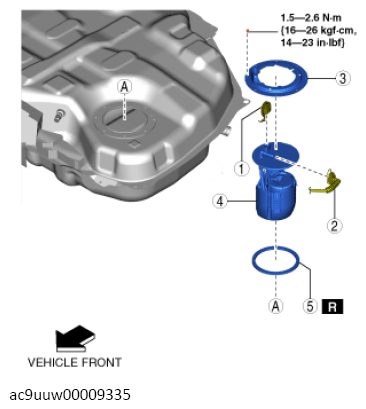

Fig 1: Fuel Pump Unit Components With Torque Specification (2WD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel pump unit connector
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
1	Set plate
4	Fuel pump unit
5	Packing
