U.S.A. And Canada: 2WD: Notes

  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  4. Drain the fuel. (See FUEL DRAINING PROCEDURE .)
  5. Disconnect the following parts:
  6. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  7. Disconnect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
  8. Remove the HO2S clip from the body. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
  9. Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  10. Remove in the order indicated in the table.
  11. Install in the reverse order of removal.
  12. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

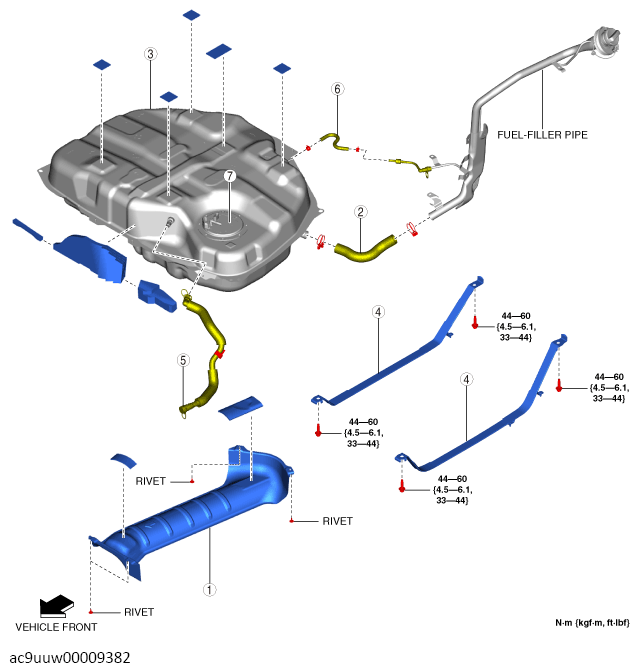

    Fig 1: Fuel Tank Components With Torque Specification (U.S.A. And Canada, 2WD)
    G13569849Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fuel tank insulator
    (See FUEL TANK INSULATOR REMOVAL NOTE (2WD) .)
    2 Joint hose
    3 Fuel tank
    (SEE FUEL TANK REMOVAL NOTE (2WD) .)
    4 Fuel tank strap
    5 Quick release connector
    (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
    6 Breather hose
    7 Fuel pump unit
    (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
