Transfer Location Index

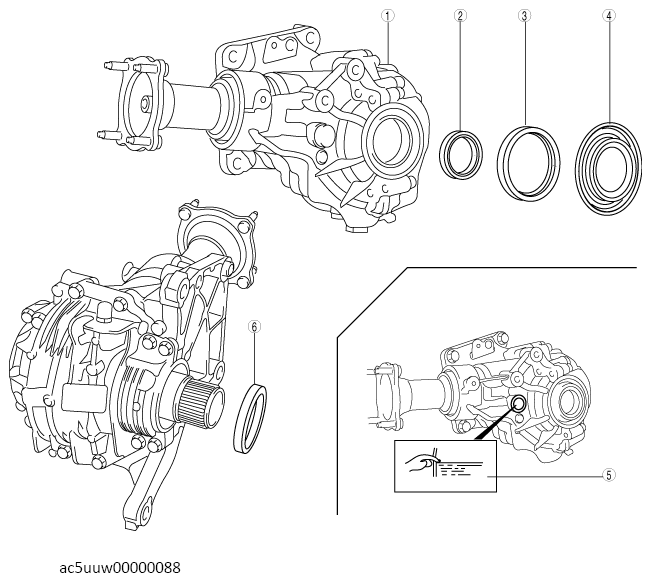

G13570641Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Transfer
(See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL] .)
2 Transfer oil seal (RH) No.3
(See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
3 Transfer oil seal (RH) No.2
(See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
4 Transfer oil seal (RH) No.1
(See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
5 Transfer oil
(See TRANSFER OIL INSPECTION [GW6AX-EL] .)
(See TRANSFER OIL REPLACEMENT [GW6AX-EL] .)
6 Transfer oil seal (LH)
(See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
