Cap installation note

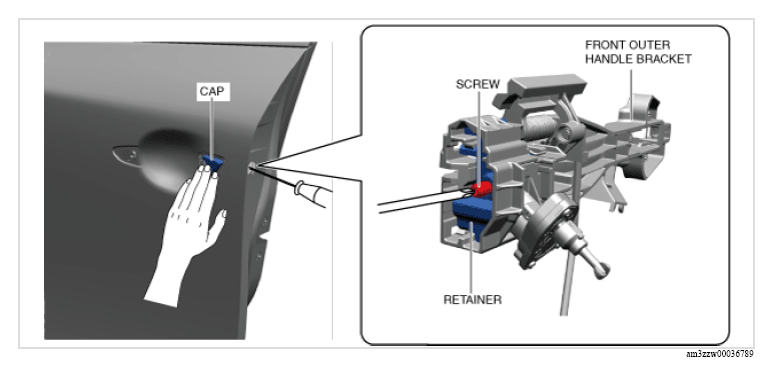

  1. Tighten the screw while holding the cap, and return the retainer to its original position.
G13179007Courtesy of MAZDA MOTORS CORP.
