Hood Latch Removal/Installation: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION (US) .)
  3. Disconnect the connector.

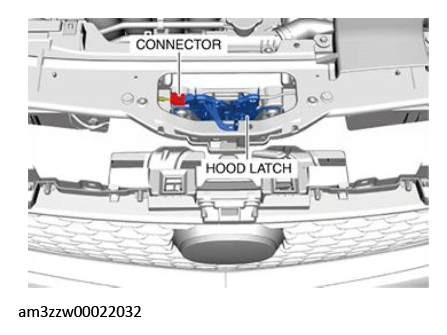

    G13179060Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the hood release cable.
    Fig 1: Hood Latch Bolts With Torque Specification
    G13179061Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
  6. Remove the hood latch. (See HOOD LATCH INSTALLATION NOTE .)
  7. Install in the reverse order of removal.
