Front Inner Handle

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    2. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    3. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    4. Power window sub switch (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    5. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)

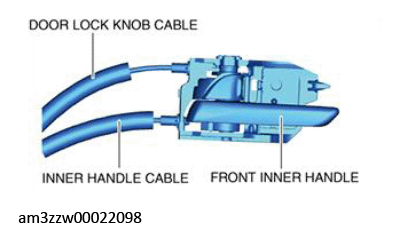

  3. Disconnect the door lock knob cable and the inner handle cable from the front inner handle.
    G13179075Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
