Liftgate Lock Striker Installation Note

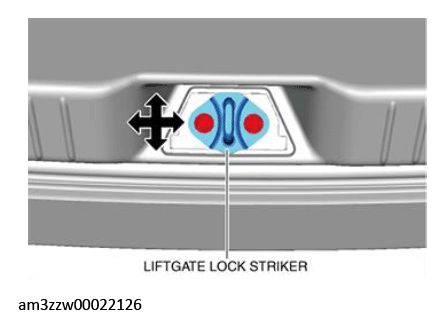

Refer to [LIFTGATE ADJUSTMENT] and adjust the liftgate lock striker so that the height difference and gap of the liftgate is within the specification. (See LIFTGATE ADJUSTMENT .)

Courtesy of MAZDA MOTORS CORP.
