Liftgate Opener Switch Removal/Installation

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
2. Remove the following parts.
   1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
   2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
   3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
   4. Door lock switch (liftgate) (with door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION (US) .)
   5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

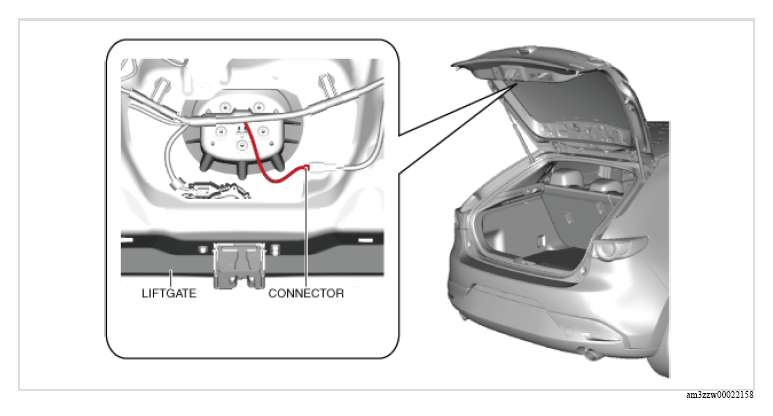

3. Disconnect the connector.

   Courtesy of MAZDA MOTORS CORP.

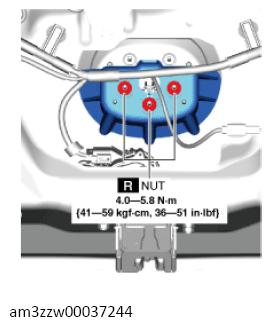

4. Remove the nuts.
   Fig 1: Liftgate Opener Switch Nuts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

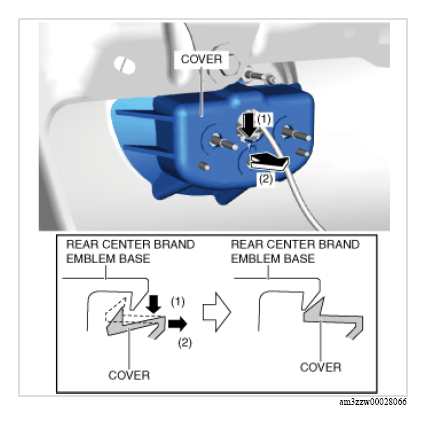

5. While pressing the cover tab in the direction of arrow (1) shown in the figure, pull the cover in the direction of arrow (2), and then remove the cover from the rear center brand emblem base.

   Courtesy of MAZDA MOTORS CORP.

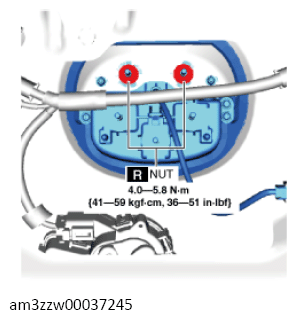

6. Remove the nuts.
   Fig 2: Liftgate Opener Switch Nuts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

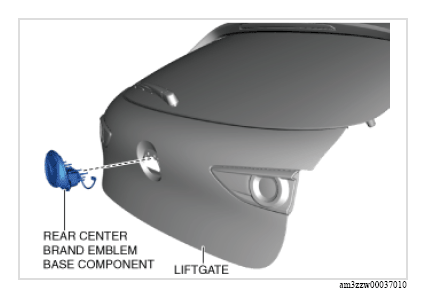

7. Remove the rear center brand emblem base component.

   Courtesy of MAZDA MOTORS CORP.

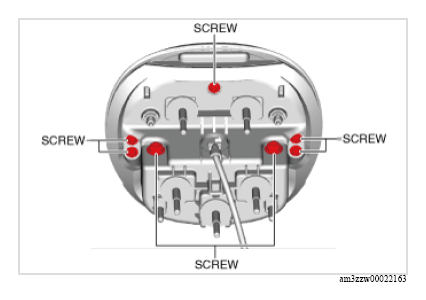

8. Remove the screws.

   Courtesy of MAZDA MOTORS CORP.

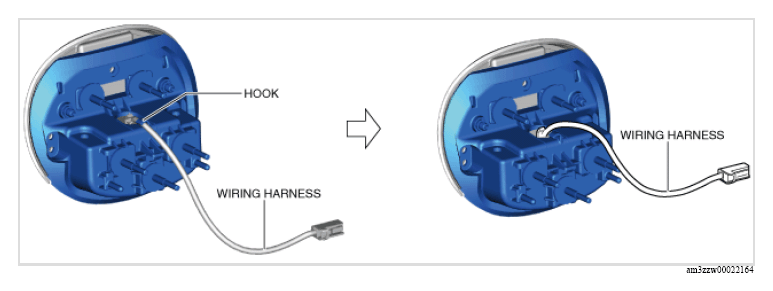

9. Detach the liftgate opener switch wiring harness from the hook as shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

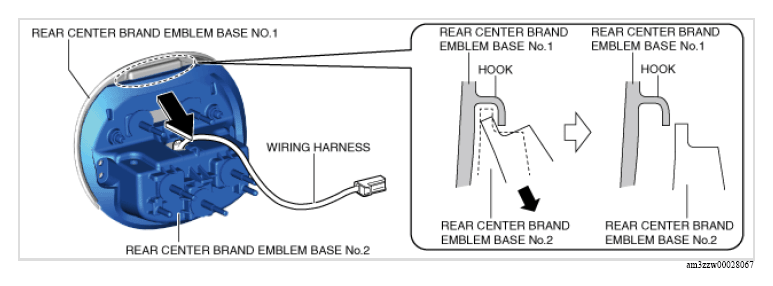

10. Move rear center brand emblem base No. 2 in the direction of the arrow shown in the figure and detach the rear center brand emblem base No. 1 hook from rear center brand emblem base No. 2.

    Courtesy of MAZDA MOTORS CORP.

11. Remove rear center brand emblem base No. 2.

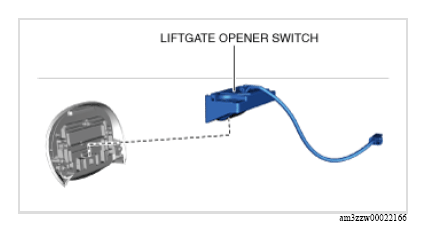

12. Remove the liftgate opener switch.

    Courtesy of MAZDA MOTORS CORP.

13. Install in the reverse order of removal.
