Cap Installation Note

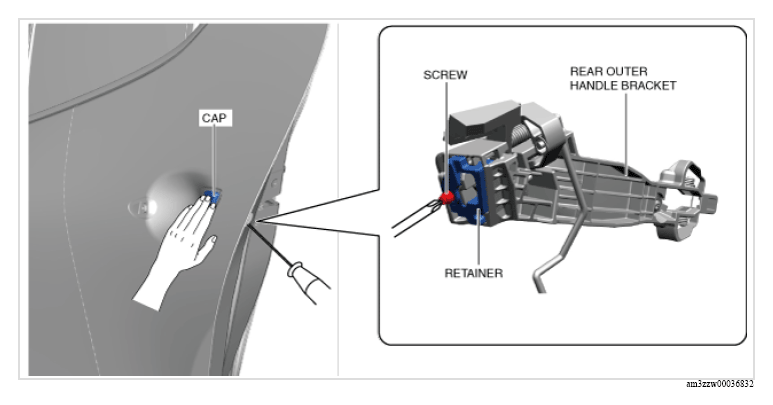

  1. Tighten the screw while holding the cap, and return the retainer to its original position.
G13179147Courtesy of MAZDA MOTORS CORP.
