Cluster Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION (US) .)
    6. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)

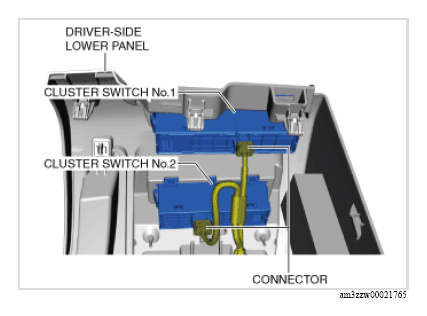

  3. Disconnect the connectors.
    G13179360Courtesy of MAZDA MOTORS CORP.

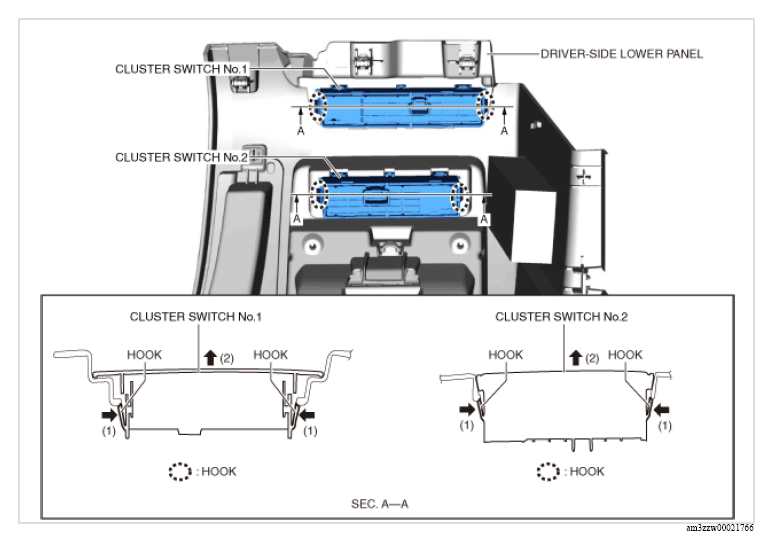

  4. With the hooks pressed in the direction of arrows (1) shown in the figure, push out the cluster switch No. 1 in the direction of arrow (2) and remove it from the driver-side lower panel.
    G13179361Courtesy of MAZDA MOTORS CORP.
  5. With the hooks pressed in the direction of arrows (1) shown in the figure, push out the cluster switch No. 2 in the direction of arrow (2) and remove it from the driver-side lower panel.
  6. Install in the reverse order of removal.
