Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

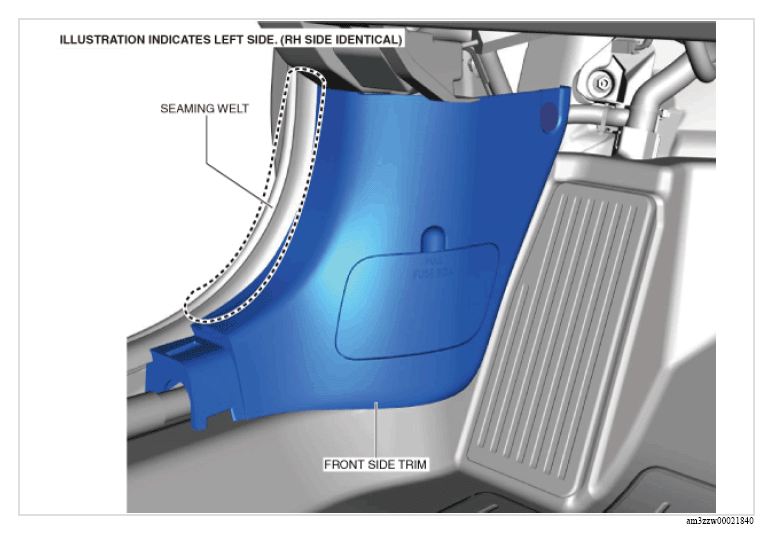

  2. Partially peel back the seaming welt.
    G13179437Courtesy of MAZDA MOTORS CORP.

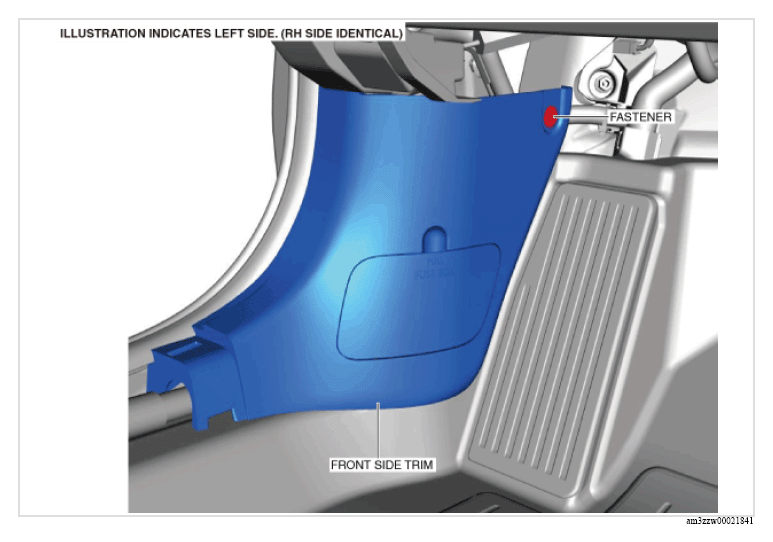

  3. Remove the fastener.
    G13179438Courtesy of MAZDA MOTORS CORP.

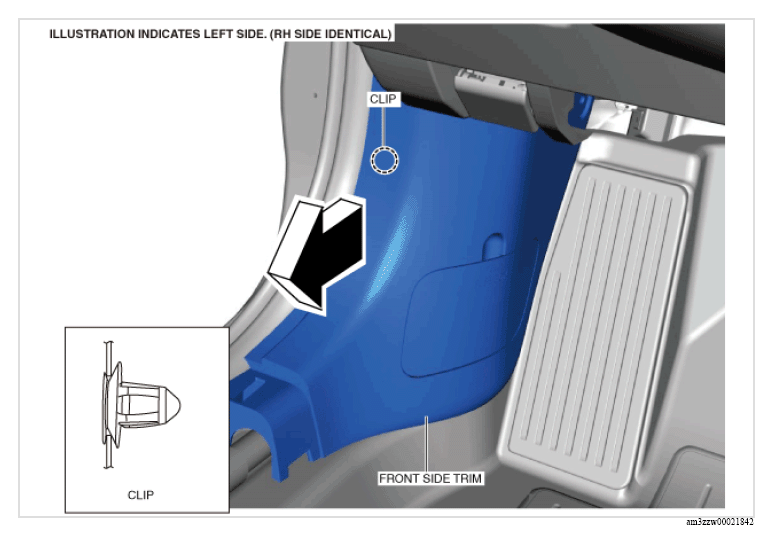

  4. Pull the front side trim in the direction of the arrow shown in the figure and remove it while detaching the clip.
    G13179439Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
