Inner Garnish Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

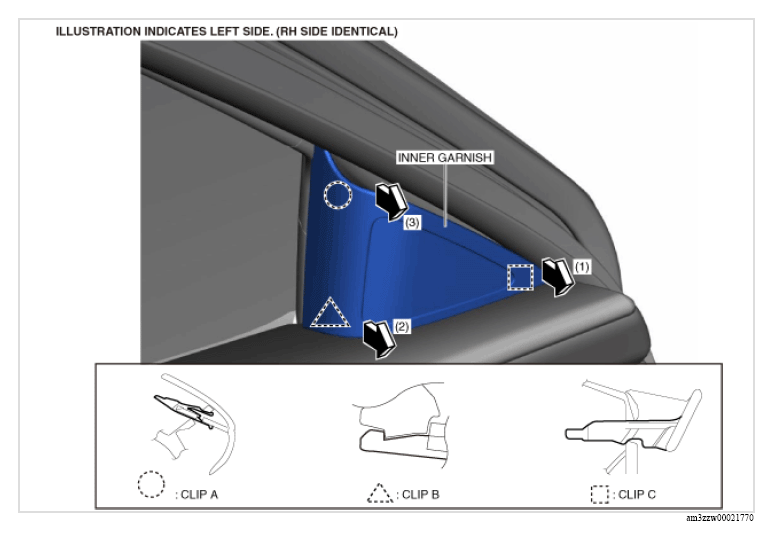

- Using a remover tool, move the inner garnish in the order of arrows (1), (2), and (3) shown in the figure, detach the clip A, B and C.
- Disconnect the tweeter connector.
- Install in the reverse order of removal.NOTE:
- When replacing the inner garnish, remove the tweeter. (See TWEETER REMOVAL/INSTALLATION .)
