Up-down/left-right adjustment switch
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

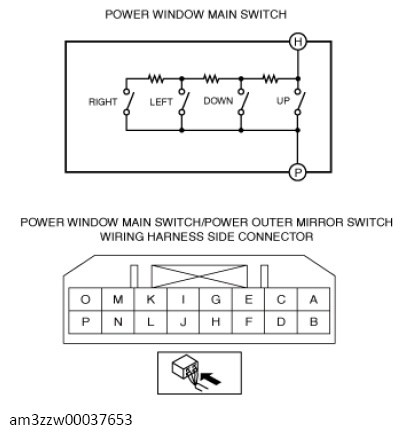

- Verify that the resistance between power window main switch terminals H and P is as indicated in the table.
Switch Position Resistance (ohm) Terminal Up 0 H-P Down 326.7-333.3 Left 999.9-1020.1 Right 2979.9-3040.1 - If not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
