Sensor Cover Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

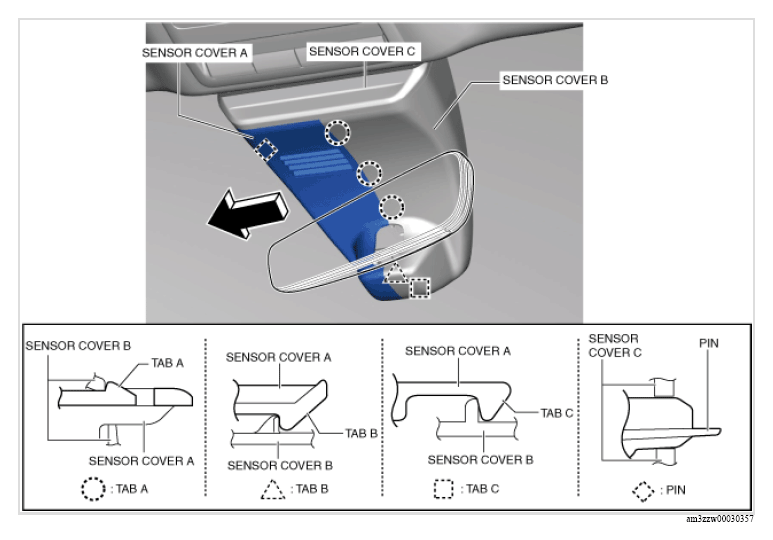

Pull sensor cover A in the direction of the arrow shown in the figure and remove it while detaching the pin and tabs A, B, and C.

Courtesy of MAZDA MOTORS CORP.

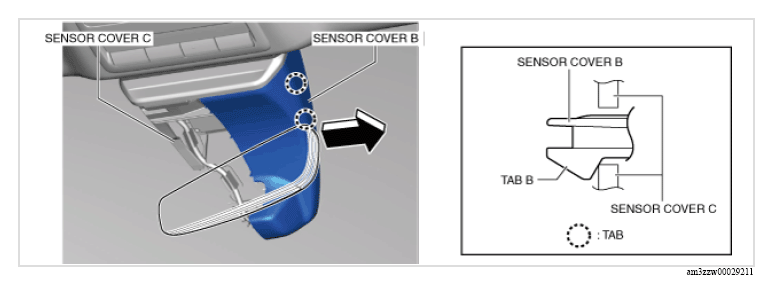

Pull sensor cover B in the direction of the arrow shown in the figure and remove it while detaching the tabs.

Courtesy of MAZDA MOTORS CORP.

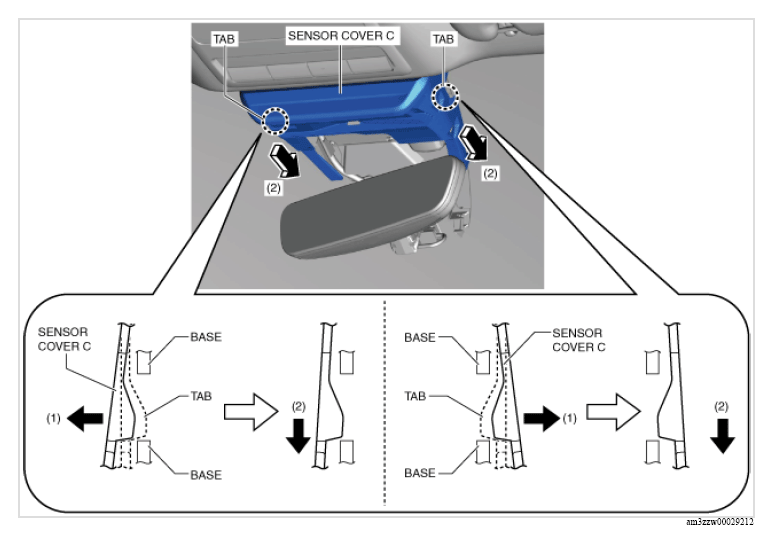

Move the tabs in the direction of arrows (1) shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Pull sensor cover C in the direction of arrows (2) shown in the figure and remove it and the indicator unit as a single unit while detaching the tabs.

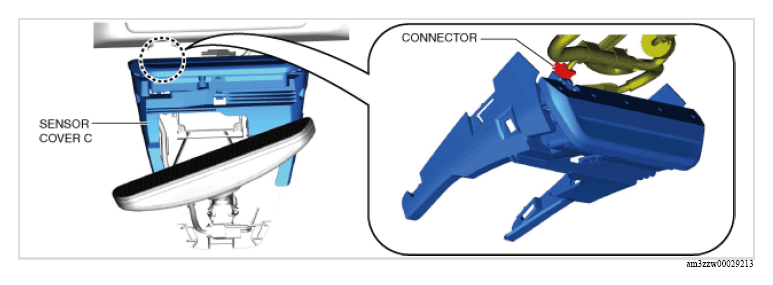

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- When replacing sensor cover C, remove the indicator unit. (See INDICATOR UNIT REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
