Common Procedure: Notes

  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    2. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    3. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    4. Power window sub switch (front) (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    5. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)
    6. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    7. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    8. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
    9. Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
    10. Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)

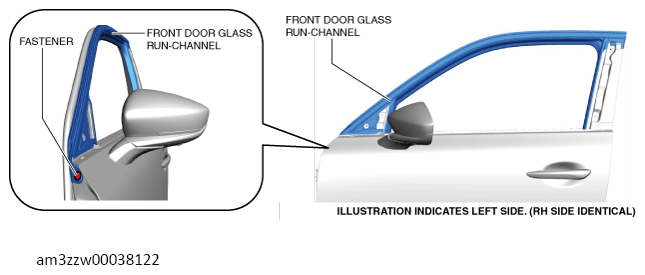

  4. Remove the fastener.
    G13717090Courtesy of MAZDA MOTORS CORP.
  5. Perform front door glass run-channel removal/installation according to the flow. (See FLOW .)
