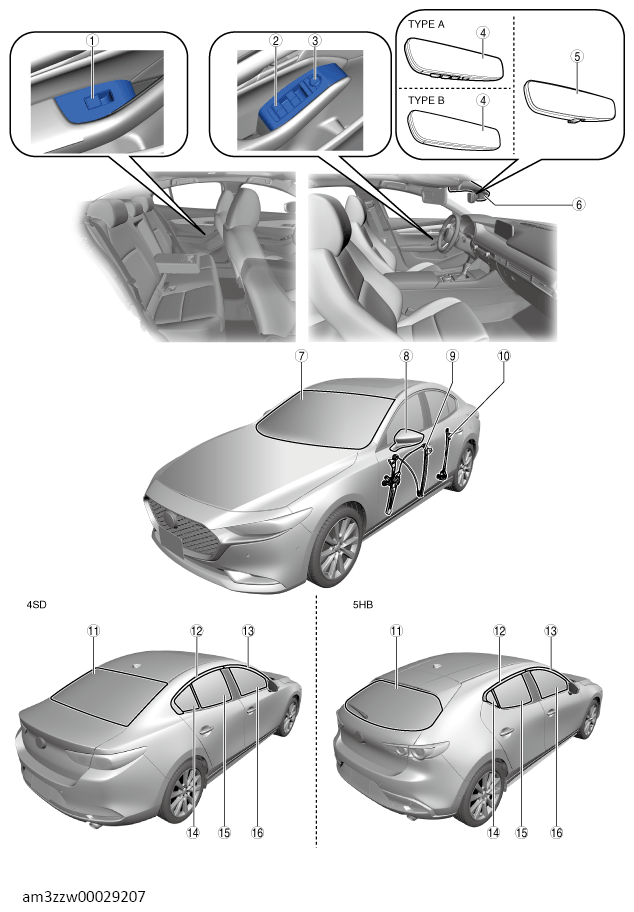

| 1 |
Power window sub switch
(See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
(See POWER WINDOW SUB SWITCH INSPECTION .)
(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .) |
| 2 |
Power window main switch
(See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
(See POWER WINDOW MAIN SWITCH INSPECTION (US) .)
(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .) |
| 3 |
Power outer mirror switch
(See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
(See POWER OUTER MIRROR SWITCH INSPECTION .) |
| 4 |
Auto-dimming rear-view mirror (with auto-dimming rear-view mirror)
(See AUTO-DIMMING REAR-VIEW MIRROR REMOVAL/INSTALLATION .)
(See AUTO-DIMMING REAR-VIEW MIRROR INSPECTION (US) .) |
| 5 |
Rear-View mirror (without auto-dimming rear-view mirror)
(See REAR-VIEW MIRROR REMOVAL/INSTALLATION .) |
| 6 |
Sensor cover
(See SENSOR COVER REMOVAL/INSTALLATION .) |
| 7 |
Windshield
(See WINDSHIELD REMOVAL (US) .)
(See WINDSHIELD INSTALLATION (US) .)
(See WINDSHIELD WIPER DE-ICER INSPECTION (US) .) |
| 8 |
Power outer mirror
(See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
(See RETRACT/RETURN MOTOR REMOVAL/INSTALLATION .)
(See POWER OUTER MIRROR INSPECTION .)
(See OUTER MIRROR GLASS REMOVAL .)
(See OUTER MIRROR GLASS INSTALLATION .)
(See OUTER MIRROR GLASS INSPECTION .)
(See OUTER MIRROR GARNISH REMOVAL/INSTALLATION (US) .) |
| 9 |
Front power window regulator
(See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
(See FRONT POWER WINDOW MOTOR INSPECTION .) |
| 10 |
Rear power window regulator
(See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
(See REAR POWER WINDOW MOTOR INSPECTION .) |
| 11 |
Rear window glass
(See REAR WINDOW GLASS REMOVAL .)
(See REAR WINDOW GLASS INSTALLATION .)
(See REAR WINDOW DEFOGGER INSPECTION .)
(See REAR WINDOW DEFOGGER/GLASS ANTENNA REPAIR .) |
| 12 |
Rear door glass run-channel
(See REAR DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION (US) .) |
| 13 |
Front door glass run-channel
(See FRONT DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION (US) .) |
| 14 |
Rear door quarter glass
(See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .) |
| 15 |
Rear door glass
(See REAR DOOR GLASS REMOVAL/INSTALLATION .) |
| 16 |
Front door glass
(See FRONT DOOR GLASS REMOVAL/INSTALLATION .) |
