Outer Mirror Glass Removal

NOTE:

Courtesy of MAZDA MOTORS CORP.

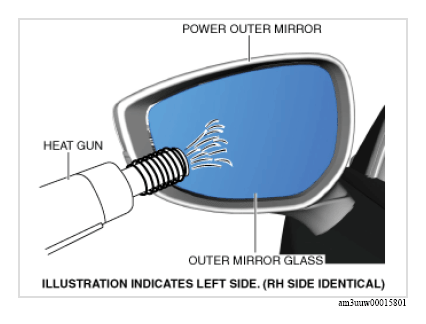

Removal of the outer mirror glass can be facilitated by warming the back of the glass to approx. 50°C {90°F} to 60°C {108°F}using a heat gun.

CAUTION:

Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} could deform it.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

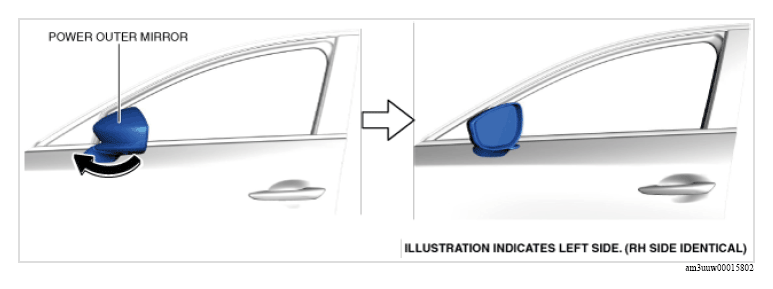

To facilitate removal of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.

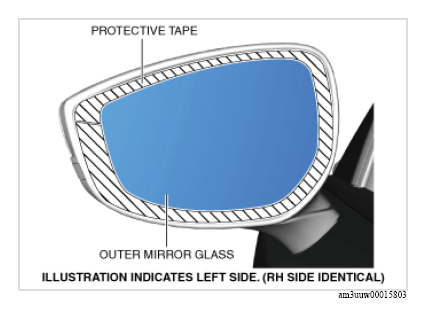

Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Courtesy of MAZDA MOTORS CORP.

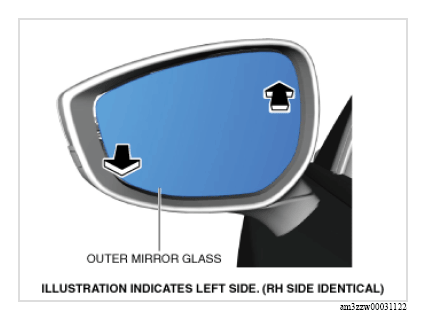

Move the outer mirror glass in the direction of the arrows shown in the figure to secure a space for inserting your fingers.

Courtesy of MAZDA MOTORS CORP.

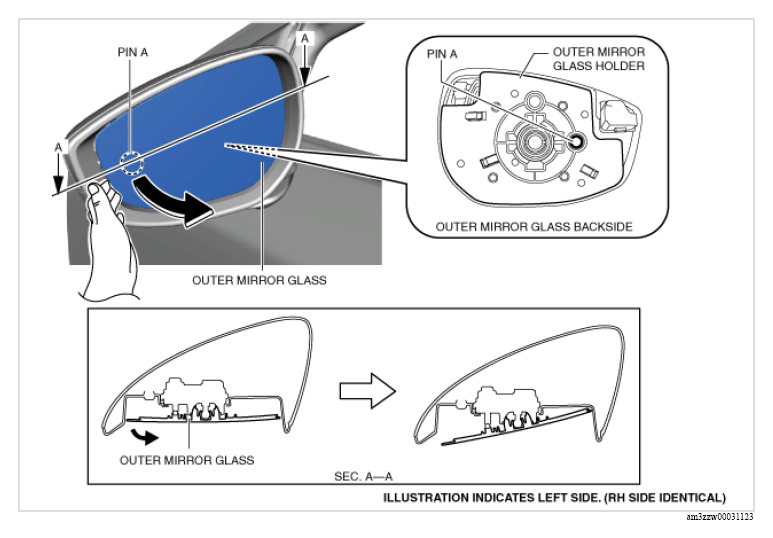

Insert your fingers into the area shown in the figure, and move the outer mirror glass in the direction of the arrow to detach pin A.
CAUTION:
- When moving the outer mirror glass, if only the mirror glass is moved, the mirror glass could separate from the outer mirror glass holder. Move the outer mirror glass holder together with the mirror glass when moving the outer mirror glass.
Courtesy of MAZDA MOTORS CORP.

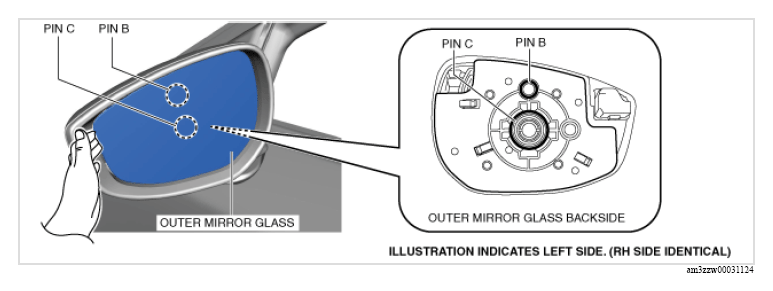

Insert your fingers behind the glass in the same manner as Step 4 and disengage the remaining pins B and C.

Courtesy of MAZDA MOTORS CORP.

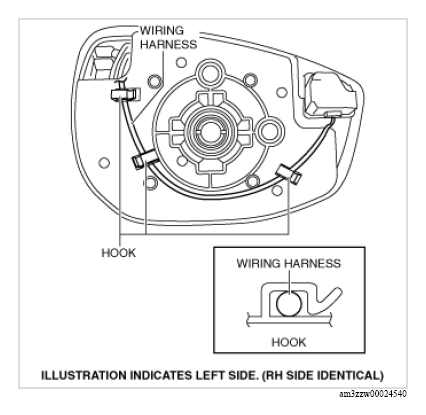

Remove the wiring harness from the hooks.

Courtesy of MAZDA MOTORS CORP.

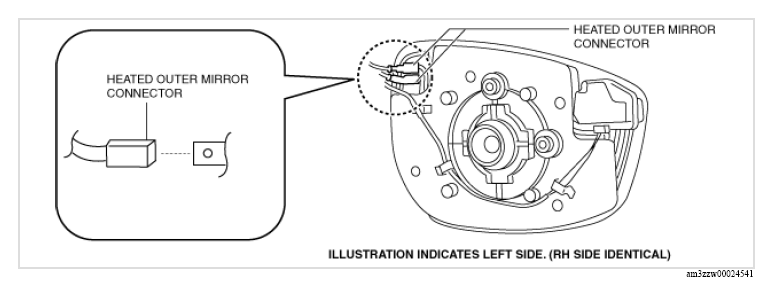

Disconnect the heated outer mirror connectors. (with heated outer mirror)

Courtesy of MAZDA MOTORS CORP.

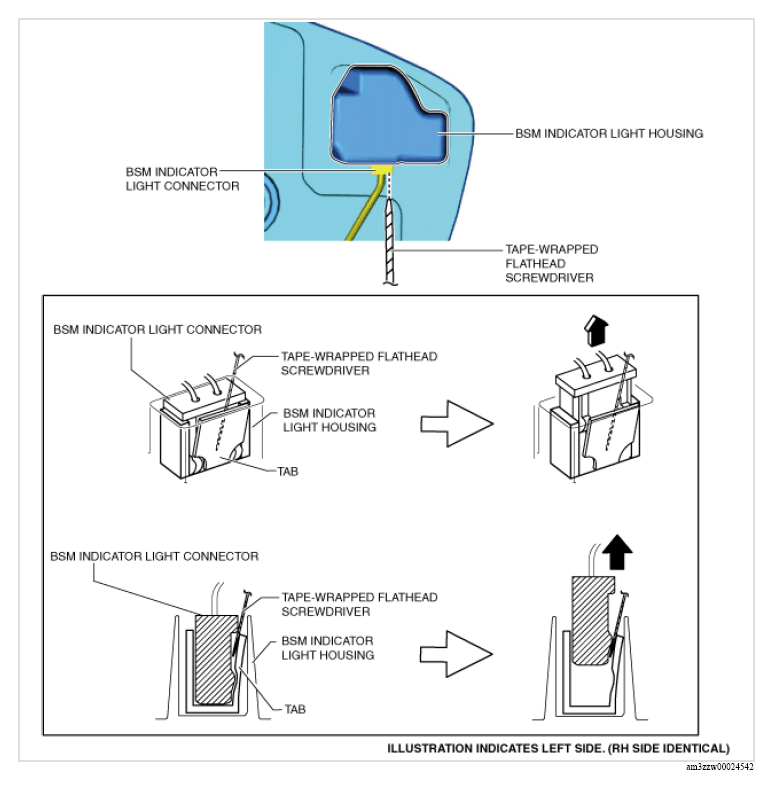

Insert a tape-wrapped flathead screwdriver to the position shown in the figure, remove the blind spot monitoring (BSM) indicator light connector (with blind spot monitoring (BSM) system).
CAUTION:
- Remove the BSM indicator light connector being careful not to pry the BSM indicator light housing after inserting a tape-wrapped flathead screwdriver. If the BSM indicator light connector and the housing are damaged or deformed, poor contact of the connector may occur, causing the indicator light not to turn on.
Courtesy of MAZDA MOTORS CORP.
Remove the mirror glass holder and the outer mirror glass as a single unit.
