Power Outer Mirror Removal/Installation: Notes

Fully lower the front door glass.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
2. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
3. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
4. Power window sub switch (front) (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
5. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)

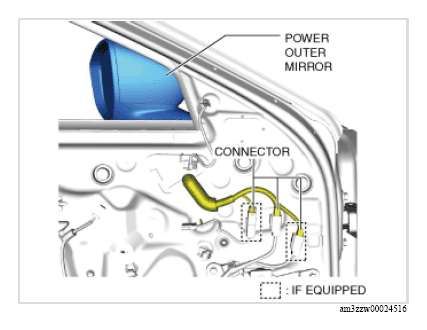

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.

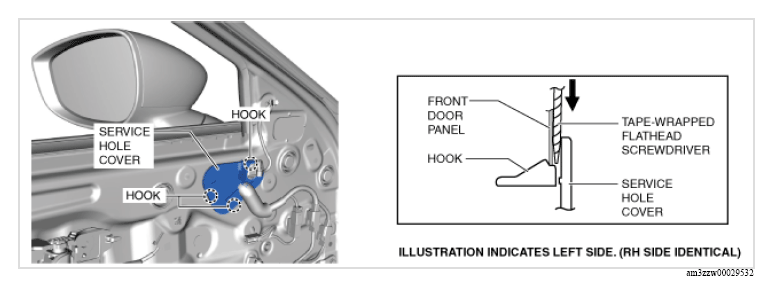

Move a tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and detach the hooks from the front door panel.

Courtesy of MAZDA MOTORS CORP.
Remove the service hole cover.
Remove the bolts.

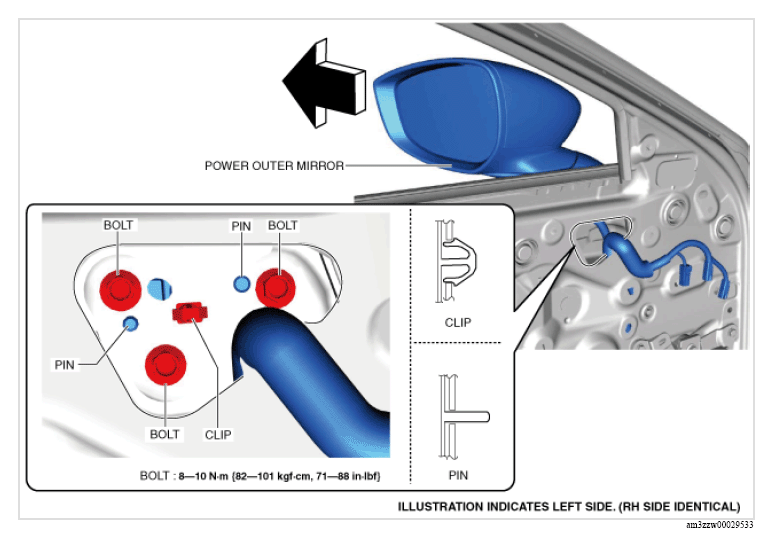

Fig 1: Power Outer Mirror Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If clip of the power outer mirror is detached, the power outer mirror may fall off and be damaged. When detaching clip of the power outer mirror, hold the power outer mirror by hand during the servicing.
Pull the power outer mirror in the direction of the arrow while removing the clip and pins.
Remove the power outer mirror.
Install in the reverse order of removal. (See POWER OUTER MIRROR INSTALLATION NOTE .)
Perform the 360° view monitor system aiming. (with side camera) (See 360°VIEW MONITOR SYSTEM AIMING .)
