Front side switch (RF)

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

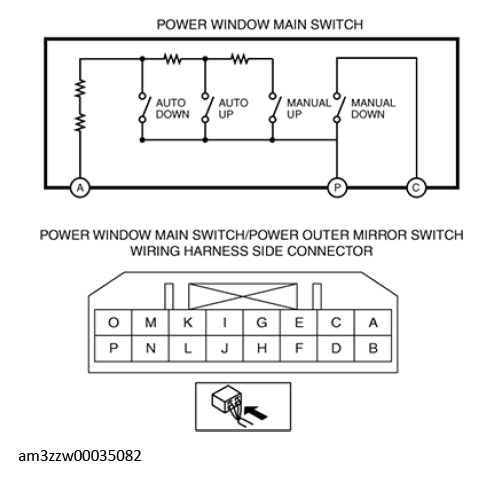

Verify that the resistance between power window main switch terminals A and P is as indicated in the table.

G13178687

Courtesy of MAZDA MOTORS CORP.

Switch Position	Resistance (ohm)	Terminal
Auto Down	445.5-454.5	A-P
Auto Up	683.1-696.9
Manual Up	1069.2-1090.8

If not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

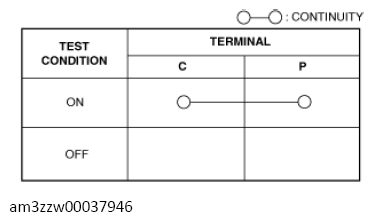

Verify that the continuity between the power window main switch terminals is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
