Power Window Sub Switch Removal/Installation: Rear

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

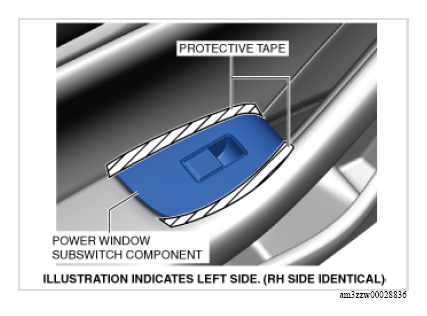

Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Courtesy of MAZDA MOTORS CORP.

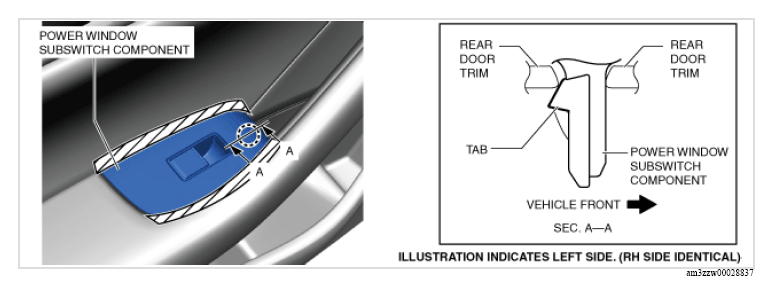

Using a remover tool, remove the tab shown in the figure.

Courtesy of MAZDA MOTORS CORP.

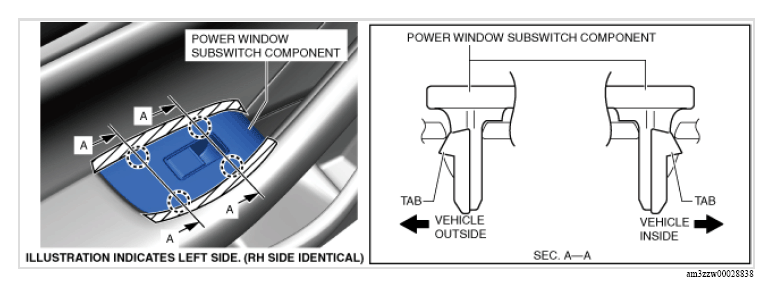

Using a remover tool, remove the tabs shown in the figure.

Courtesy of MAZDA MOTORS CORP.

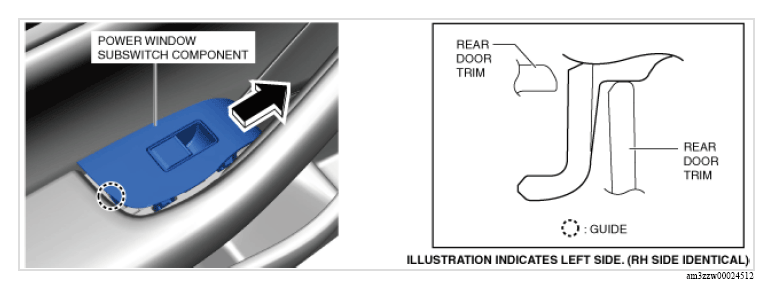

Move the power window sub switch component in the direction of the arrow and detach the guide.

Courtesy of MAZDA MOTORS CORP.

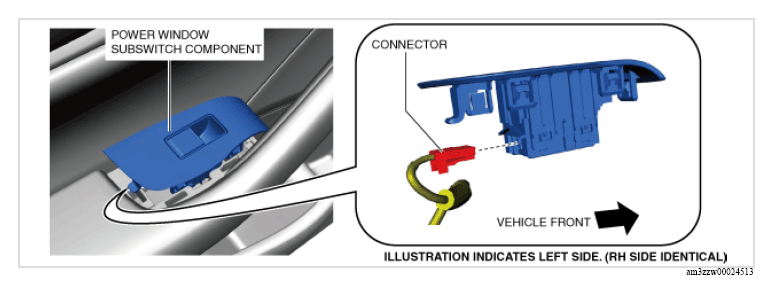

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
Remove the power window sub switch component from the rear door trim.

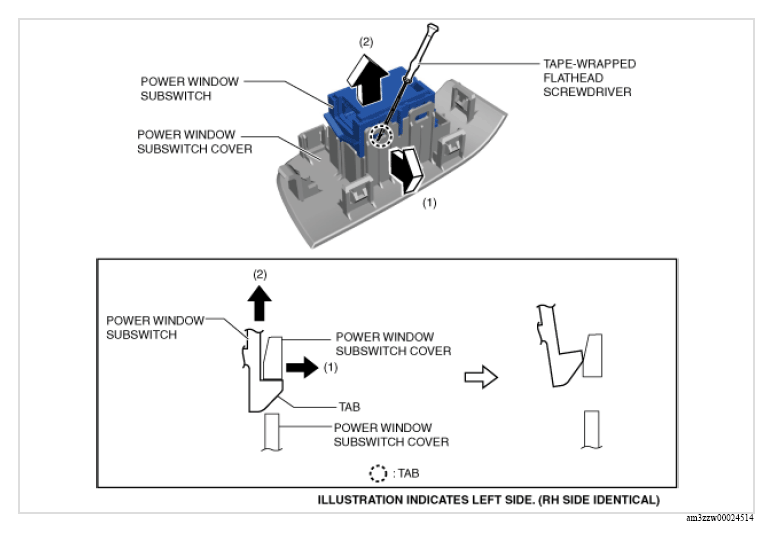

Using a tape-wrapped flathead screwdriver, move the power window sub switch cover end in the direction of arrow (1) shown in the figure, and detach the tab while moving the power window sub switch in the direction of arrow (2).

Courtesy of MAZDA MOTORS CORP.

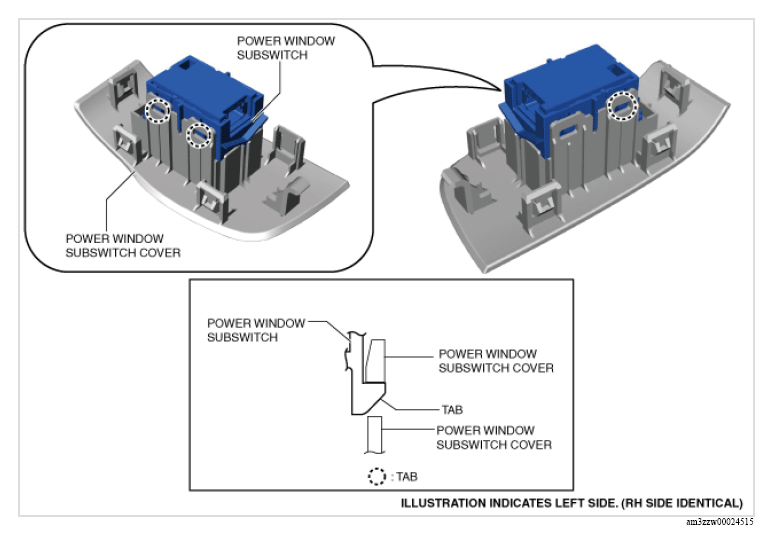

Detach the tabs in the same manner as Step 8.

Courtesy of MAZDA MOTORS CORP.
Remove the power window sub switch from the power window sub switch cover.
Install in the reverse order of removal.
