Service Hole Cover No. 2 Installation Note

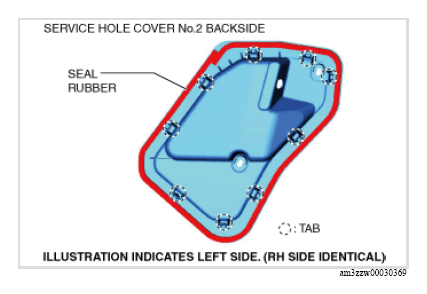

  1. When installing the service hole cover No. 2, verify that the seal rubber is not wet.
    G13178745Courtesy of MAZDA MOTORS CORP.
  2. If the seal rubber or a tab is damaged, replace the service hole cover.
