Rear Power Window Regulator Installation Note

  1. The rear power window regulator installation work can be facilitated by performing the following procedure:

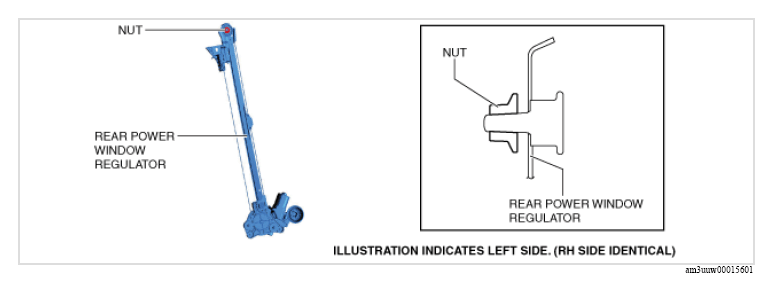

    1. Temporarily tighten the nut shown in the figure.
      G13178753Courtesy of MAZDA MOTORS CORP.

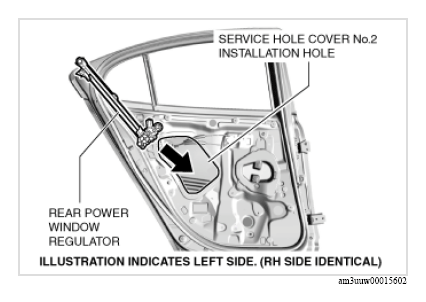

    2. Insert the rear power window regulator from the service hole cover No. 2 installation hole.
      G13178754Courtesy of MAZDA MOTORS CORP.

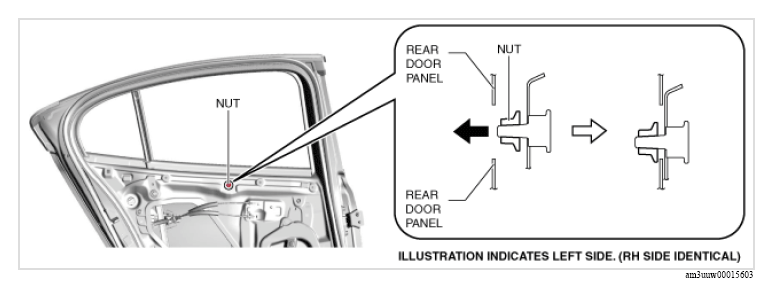

    3. Hook the temporarily tightened nuts to the rear door panel.
      G13178755Courtesy of MAZDA MOTORS CORP.
