Rear Window Glass Installation: Hatchback-5HB

  1. Remove sealant along the perimeter of the glass using a utility knife or scraper. (when reusing the glass)
  2. Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the glass.
  3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.

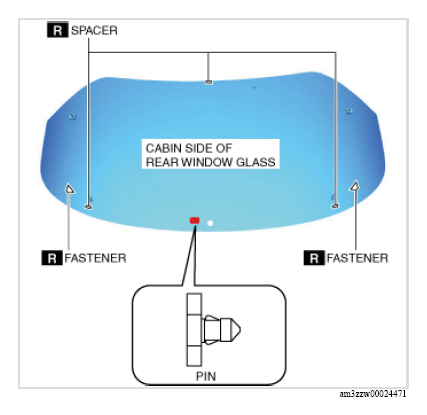

  4. Install the new spacers and fasteners to the glass as shown in the figure.
    G13178767Courtesy of MAZDA MOTORS CORP.
  5. Install the pin to the glass as shown in the figure.
    NOTE:
    • When reusing the glass, align it with the alignment mark placed before the glass was removed.

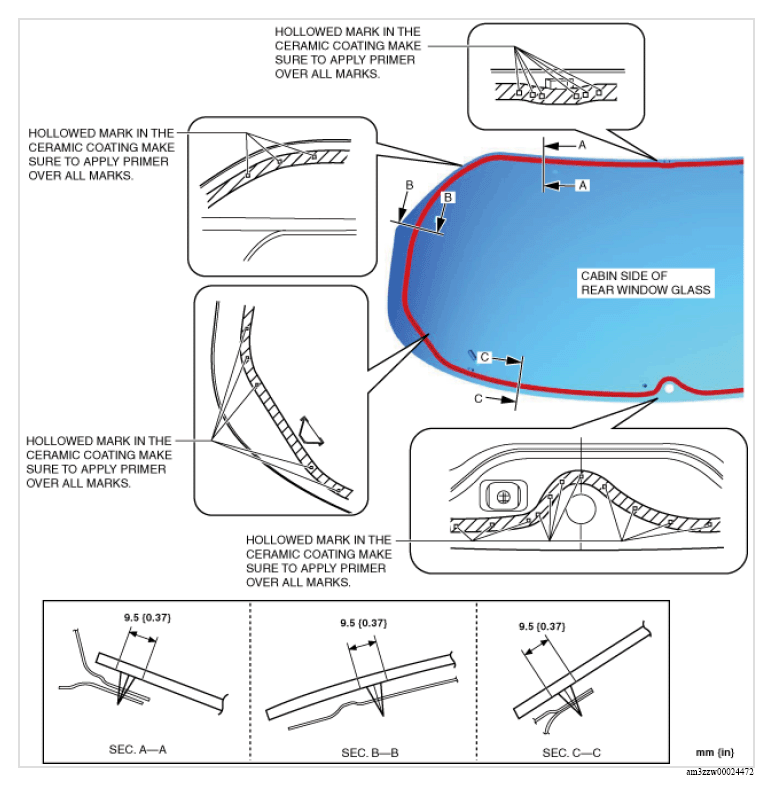

  6. Apply primer to the area of the glass shown in the figure.
    • Follow the primer product instructions for the drying time.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.
    G13178768Courtesy of MAZDA MOTORS CORP.
  7. Cut away the old sealant using a utility knife or scraper so that 1-2 mm {0.04-0.07 in} thickness of sealant remains along the perimeter of the frame.
    G13717245Courtesy of MAZDA MOTORS CORP.
  8. Clean and degrease along the perimeter of the bonding area on the body.

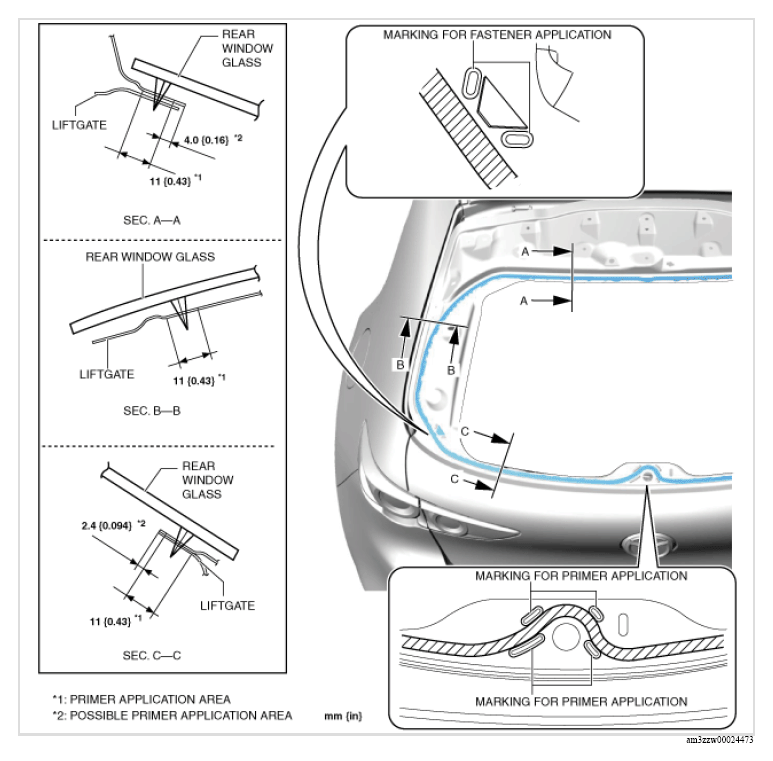

  9. Apply primer to the area of the body shown in the figure.
    • Follow the primer product instructions for the drying time.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    G13178770Courtesy of MAZDA MOTORS CORP.

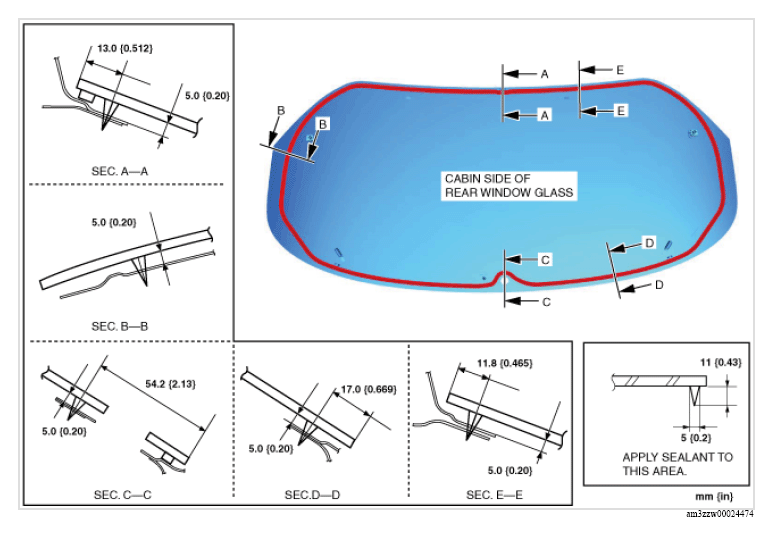

  10. Apply sealant to the area of the glass surface as shown in the figure.
    G13178771Courtesy of MAZDA MOTORS CORP.
  11. Install the rear window glass.

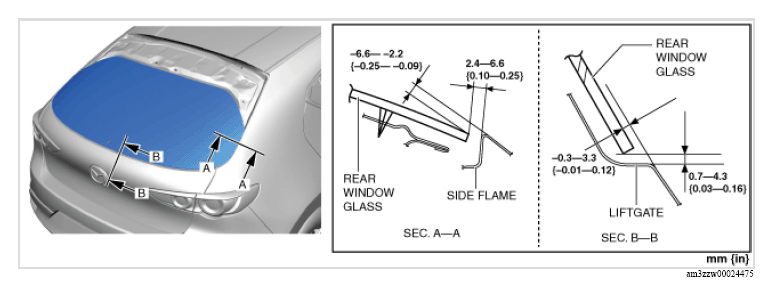

  12. Verify that the gap and height at the upper and lower parts of the glass is within the specification shown in the figure, then press along the perimeter of the glass.
    G13178772Courtesy of MAZDA MOTORS CORP.

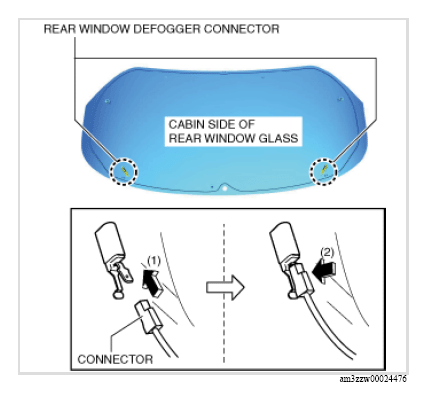

  13. Connect the rear window defogger connectors in the direction of the arrows in the order of (1), (2) shown in the figure.
    G13178773Courtesy of MAZDA MOTORS CORP.
  14. Install the following parts:
    1. Glass antenna terminal cover (See ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION .)
    2. Outer bushing (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
    3. Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
    4. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION (US) .)
    5. Rear spoiler (See REAR SPOILER INSTALLATION .)
    6. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    7. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    8. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    9. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  15. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  16. Allow the sealant to harden completely.

    Reference for sealant hardening time: 24 h

    NOTE:
    • Follow the product instructions for the sealant hardening time.
