Rear Abs Wheel-Speed Sensor Removal/Installation: Notes
- Switch the ignition ON (engine off).
- Release the electric parking brake.
- Switch the ignition OFF while pressing the electric parking brake switch.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- For the Sedan-4SD, remove the following parts:
- Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
- Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- For the Hatchback-5HB, remove the following parts:
- Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
- Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)

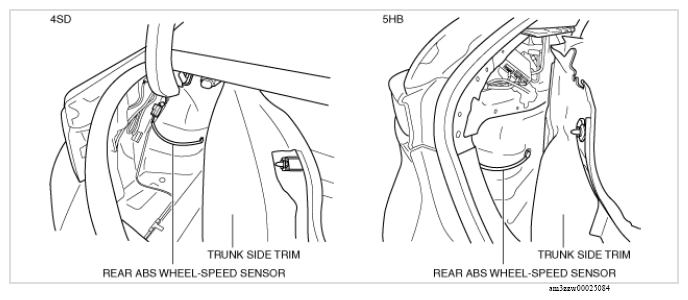

- Partially peel back the trunk side trim to a position where the rear ABS wheel speed sensor connector can be disconnected. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US)
.)
- For the Hatchback-5HB or Sedan-4SD (RH), remove the trunk side insulator. (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION .)

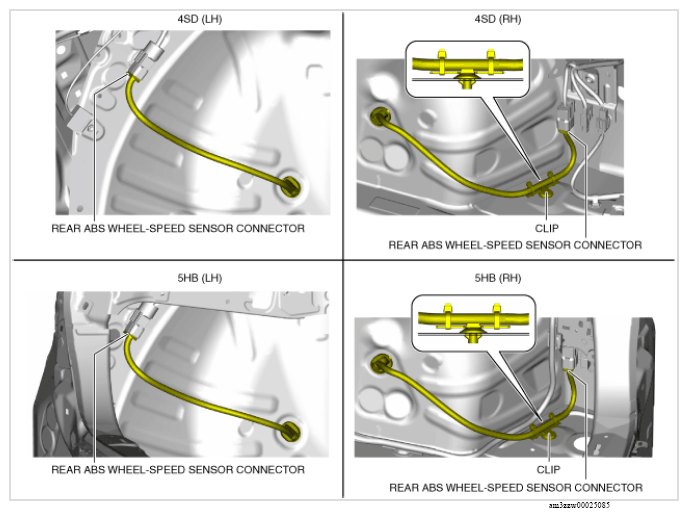

- Remove the clip from the body.
- Disconnect the rear ABS wheel-speed sensor connector.

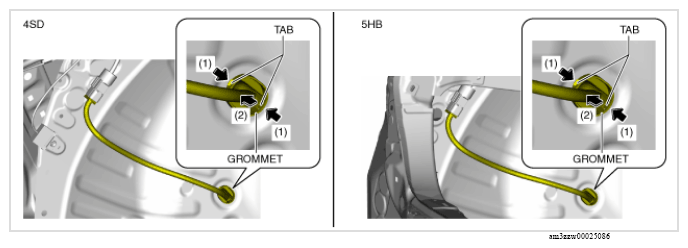

- Press the grommet tabs in the direction of arrows (1) shown in the figure and detach them from the vehicle body.
- Press the grommet in the direction of arrow (2) shown in the figure and press out the rear ABS wheel-speed sensor toward the outside of the vehicle.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)

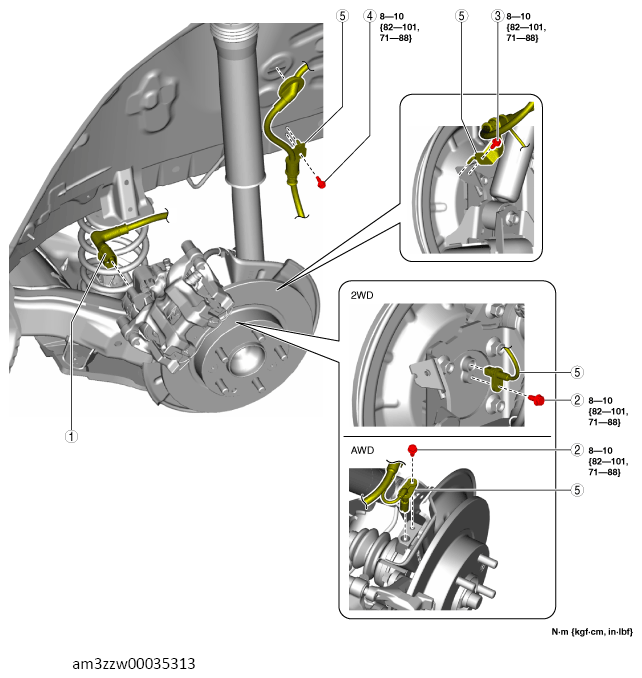

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify that there is no twisting in the rear ABS wheel-speed sensor.
PART DESCRIPTION
| 1 | Electric parking brake motor gear unit connector (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION .) |
| 2 | Bolt |
| 3 | Bolt |
| 4 | Bolt |
| 5 | Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL NOTE .) |
