Communication screen

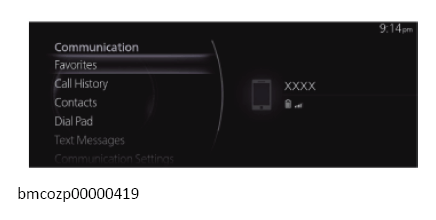

G13180365Courtesy of MAZDA MOTORS CORP.
Display content Function
Favorites Switches to the favorite screen.
Call History Displays the call history.
Contacts Displays the phone book.
Dial Pad Switches to the dial screen for phone number input.
Text Messages Switches to the text messages screen.
Communication Settings Switches ON/OFF of the SMS notification function.
NOTE:
  • If Bluetooth® communication is not established between a mobile device such as a Bluetooth®-enabled smart phone, the functions dependent on the mobile device are displayed in gray and they are not available.
  • If there any unread notification or SMS, the number of unread messages is displayed beside each item name. The number of missed call is displayed next to "Call History".
