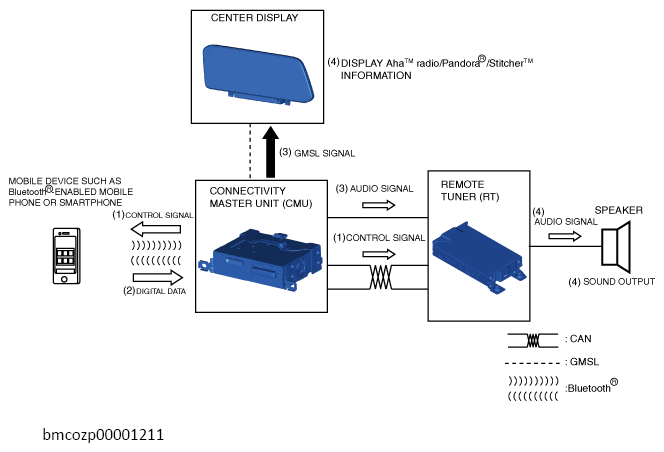

Audio function: Pandora®
- When the CMU receives the operation signal/detects the switch operation, it sends (1) the control signal to the remote tuner (RT) and a mobile device such as a Bluetooth®-enabled mobile phone or a Smartphone.
- When the mobile device such as a Bluetooth®-enabled mobile phone or a Smartphone receives the control signal, it receives the Pandora® send (2) the digital data to the CMU.
- The CMU converts the received video signal of the digital data to a GMSL signal and sends (3) the GMSL signal to the center display. In addition, it sends (3) the audio signal to the remote tuner (RT).
- The center display indicates (4) the radio information based on the GMSL signal received from the CMU. In addition, the remote tuner (RT) sends (4) the received audio signal to the speakers. The speakers output (4) the audio based on the received audio signal.
