SiriusXM satellite radio

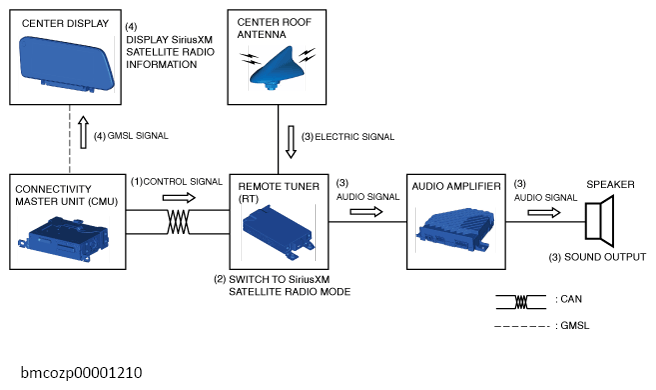

- When the CMU receives the operation signal/detects the switch operation, it sends (1) the control signal to the remote tuner (RT).
- When the remote tuner (RT) receives the control signal, it switches (2) the tuner inside the remote tuner (RT) to SiriusXM satellite radio mode and initiates reception of radio broadcasts.
- The remote tuner (RT) detects the radio broadcast selected by the user using the tuner in the remote tuner (RT) based on the radio station selected by the user. The audio signal from the detected radio broadcast is sent to the speakers. The speakers output (3) the audio based on the audio signal.
- The center display displays (4) the SiriusXM satellite radio information based on the GMSL signal sent from the CMU.
