Map display, route guidance

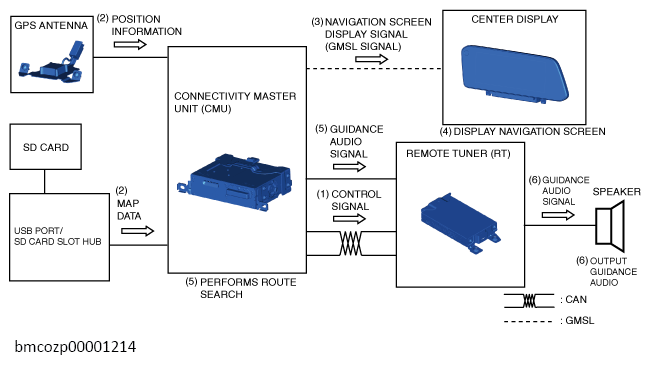

  1. When the CMU receives the operation signal/detects the switch operation, it sends (1) the control signal to the remote tuner (RT).
  2. The CMU reads (2) the map information of the SD card inserted in the USB port/SD card slot hub. In addition, reception of the position information from the GPS antenna is initiated.
  3. The CMU sends (3) the navigation screen display signal (GMSL signal) to the center display based on the SD card map information and the position information from the GPS antenna.
  4. The center display displays (4) the navigation screen based on the received navigation screen display signal (GMSL signal).
  5. The CMU detects (5) the route to the destination set by the user and sends (5) the guidance audio signal to the remote tuner (RT) after deciding the route.
  6. The remote tuner (RT) sends (6) the guidance audio signal to the speakers and the speakers output (6) the guidance audio.
    G13561510Courtesy of MAZDA MOTORS CORP.
