Sound setting (sound quality setting/volume setting)

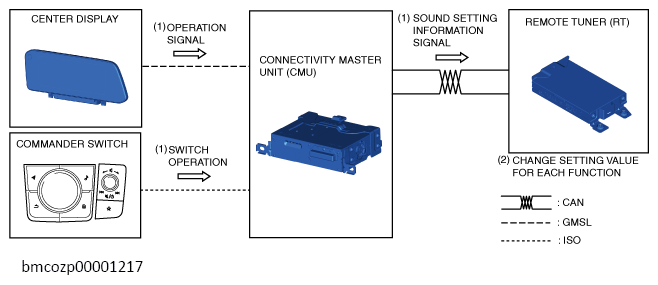

  1. When an operation signal is received/switch operation is detected (1), the CMU sends (1) a sound setting information signal to the remote tuner (RT) based on the information from the user operations.
  2. The remote tuner (RT) changes (2) the setting value for each function based on the received sound setting information signal.
    G13561515Courtesy of MAZDA MOTORS CORP.
