Fuse Block Removal/Installation: Removal

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove all the fuses.
  4. Cut the bands shown in the figure.
    G13179881Courtesy of MAZDA MOTORS CORP.

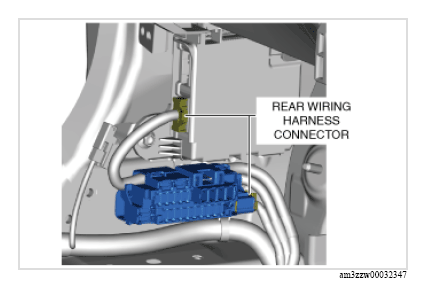

  5. Disconnect the wiring harness connectors.
    G13179882Courtesy of MAZDA MOTORS CORP.

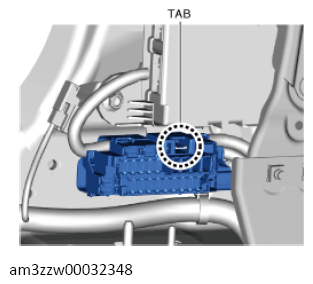

  6. Remove the fuse block tab from the bracket.
    G13561124Courtesy of MAZDA MOTORS CORP.
  7. Set the removed fuse block aside so that it does not scratch the vehicle and parts.
  8. Remove the cover from the fuse block.
    G13561125Courtesy of MAZDA MOTORS CORP.

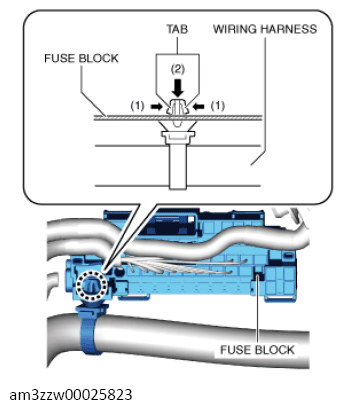

  9. While pressing the wiring harness clip tab in the direction of the arrows (1) shown in the figure, push out the wiring harness clip in the direction of the arrow (2) shown in the figure to detach the wiring harness clip tabs from the fuse block.
    G13561126Courtesy of MAZDA MOTORS CORP.
  10. Pull out the wiring harness clip.
