Generator Disassembly/Assembly (VIN 7 & VIN L)

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

   VIN 7 (MTX)

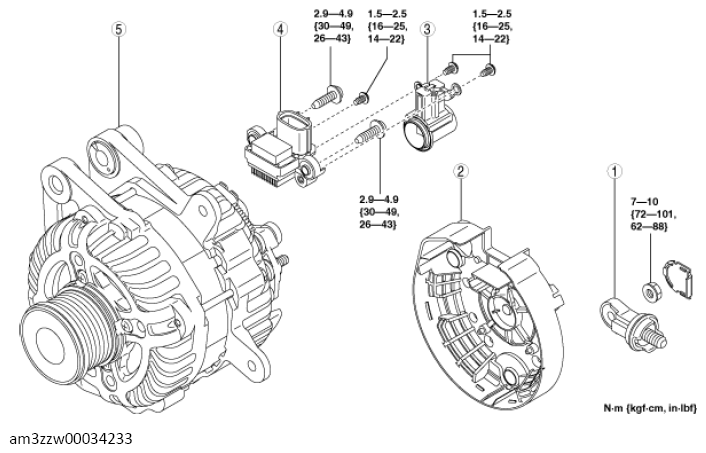

Fig 1: Generator Components With Torque Specification - VIN 7 (MTX)

Courtesy of MAZDA MOTORS CORP.

VIN 7 (ATX), VIN L & VIN M

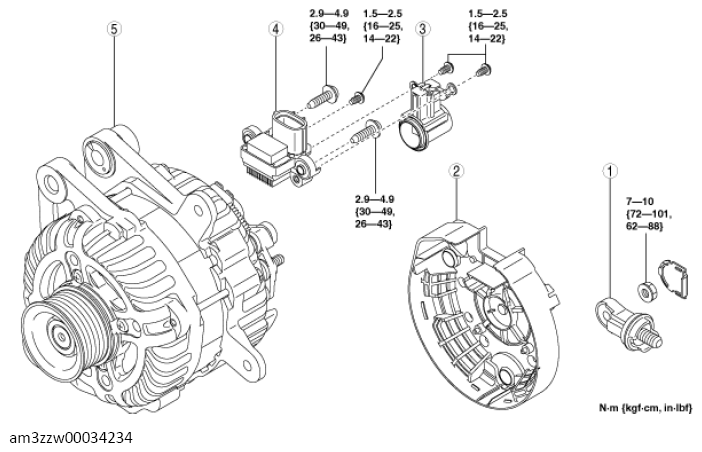

Fig 2: Generator Components With Torque Specification - VIN 7 (ATX), VIN L & VIN M

Courtesy of MAZDA MOTORS CORP.
