Rear (Hatchback-5HB): Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Door lock switch (with door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION (US) .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    6. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION (US) .)
    7. Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
  3. Remove the bolts. (See BOLT INSTALLATION NOTE .)

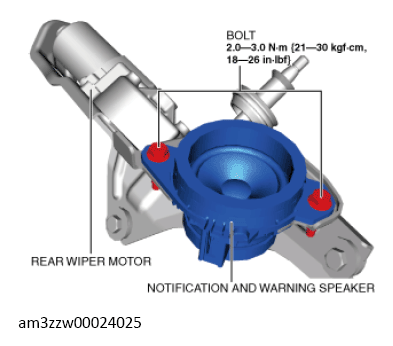

    Fig 1: Notification And Warning Speaker Bolts With Torque Specification
    G13179975Courtesy of MAZDA MOTORS CORP.
  4. Remove the notification and warning speaker (rear).
  5. Install in the reverse order of removal.
