Starting System Location Index

WARNING: This page is about a different variant/trim than selected.

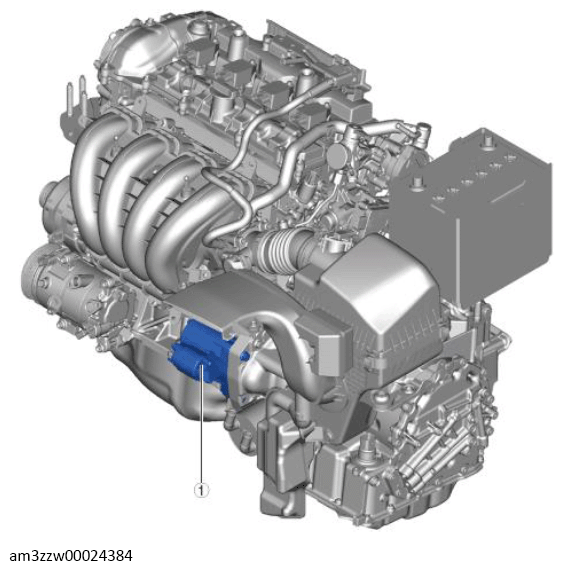

G13714221Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Starter
(See STARTER REMOVAL/INSTALLATION .)
(See STARTER INSPECTION .)
(See STARTER DISASSEMBLY/ASSEMBLY .)
