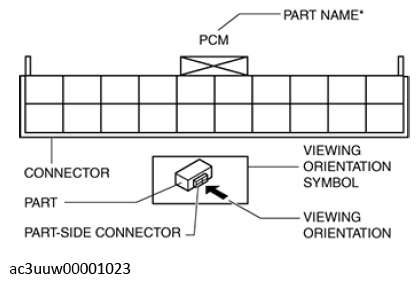

Part-side connector

• The viewing orientation for part-side connectors is from the terminal side.

Courtesy of MAZDA MOTORS CORP.

*: Part names are shown only when there are multiple connector drawings.
