Taping work

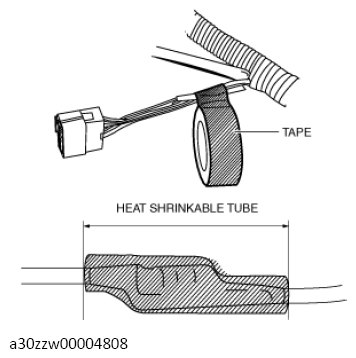

  1. Tape the surface of the heat-shrinkable tubing.
G13487643Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • Remove moisture, oil, and dust from the area to be taped before doing the taping.
  • Firmly tape the ends so that they do not peel off.
  • Always overlap the tape when wrapping.
  • Wrap the tape until it completely covers the heat-shrinkable tubing.
