Not P Position Switch Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
2. Remove the following parts:
   1. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
   2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
   3. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
   4. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
   5. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
   6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
   7. Rear console bracket No. 1 (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)

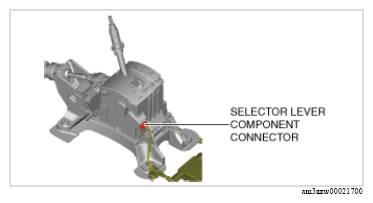

3. Disconnect the selector lever component connector.

   Courtesy of MAZDA MOTORS CORP.

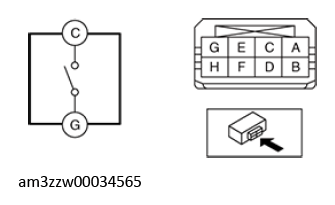

4. Verify that the continuity between selector lever component terminals C and G.

   Courtesy of MAZDA MOTORS CORP.

   • If not as verified, replace the selector lever component. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)

Not P position switch specification
