Selector Lever Knob Installation Note

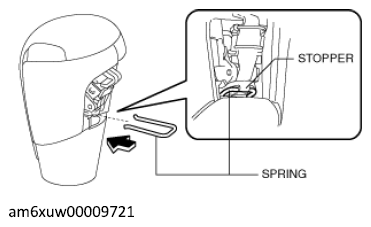

  1. Install the spring to the selector lever knob.
    CAUTION:
    • Install the spring so that it is stopped by the stopper.
    G12233196Courtesy of MAZDA MOTORS CORP.
  2. Install the lock release button cover so that it engages with the hook of the selector lever knob.
    G12233197Courtesy of MAZDA MOTORS CORP.

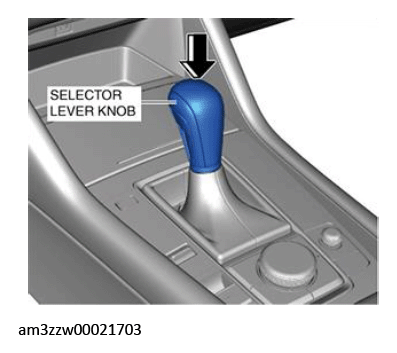

  3. Install the selector lever knob to the selector lever component.
    G13177006Courtesy of MAZDA MOTORS CORP.
