Negative Battery Terminal Connection Note

CAUTION:
  • Connect the battery terminal while pushing it down because the battery terminal may loosen.

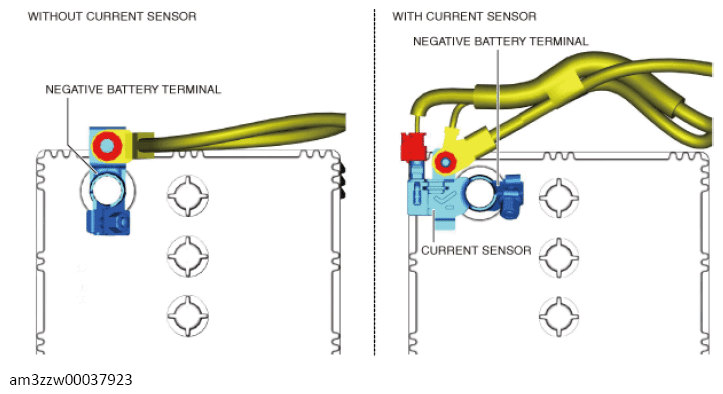

  1. Connect the negative battery terminal so that the wiring harness does not block the upper part of the battery filler cap.
G13557496Courtesy of MAZDA MOTORS CORP.
