Front Console Box Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
- Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

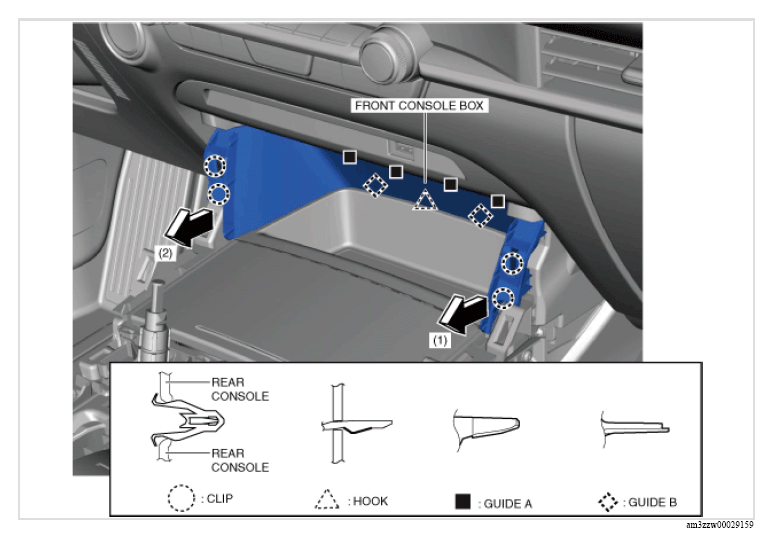

- Move the front console box in the order of arrows (1), (2) shown in the figure and remove it while detaching the clips, hooks, and guides A, B.
- Install in the reverse order of removal.
