Boost Pressure Sensor Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

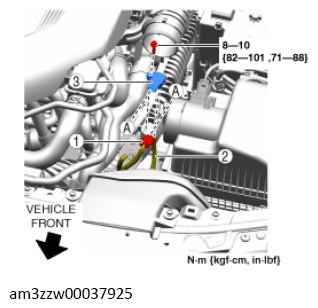

Fig 1: Boost Pressure Sensor Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Boost pressure sensor connector
2	Hose
3	Boost pressure sensor
