Resistance Inspection
NOTE:
- The low fuel pressure sensor/fuel temperature sensor cannot be removed as a single unit. When replacing the low fuel pressure sensor/fuel temperature sensor, replace it together with the high pressure fuel pump as a single unit.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Disconnect the low fuel pressure sensor/fuel temperature sensor connector. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .)

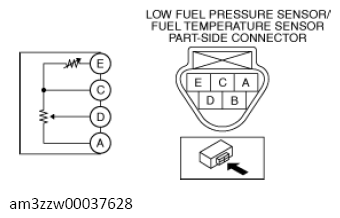

- Measure the resistance between low fuel pressure sensor/fuel temperature sensor terminals E and C.
- If not as specified, replace the high pressure fuel pump. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .)
RESISTANCE SPECIFICATION
| Fuel temperature (°C {°F}) | Resistance (Kilohms) |
|---|---|
| -40 {-40} | Approx. 44.9 |
| 0 {32} | Approx. 5.78 |
| 25 {77} | Approx. 2.04 |
| 140 {284} | Approx. 0.0719 |
