PCM Bracket Installation Note

  1. Install the PCM to the PCM bracket.

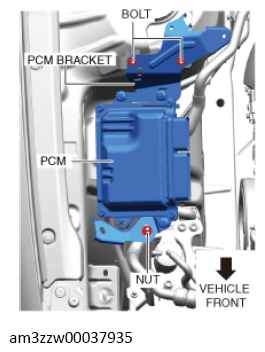

  2. Install the PCM bracket using the following procedure:
G13714531Courtesy of MAZDA MOTORS CORP.
  1. Tighten the bolts.
  2. Tighten the nut.
