Front Combination Light Disassembly/Assembly: Notes

Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
Disassemble in the order shown in the figure.

Assemble in the reverse order of disassembly.

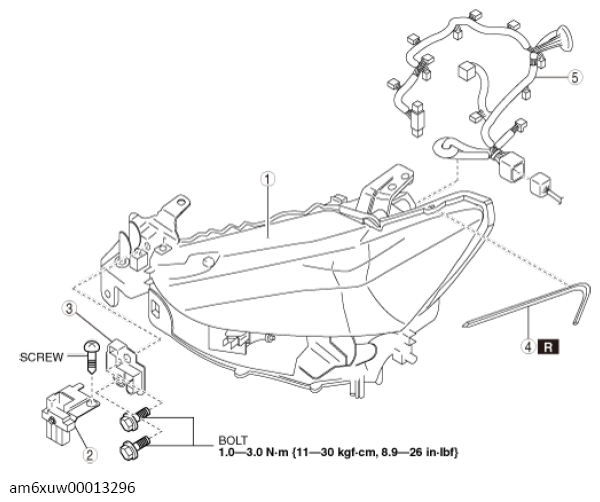

Fig 1: Exploded View Of Front Combination Light Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Front combination light
2	Bracket A
3	Bracket B
4	Protector (See PROTECTOR INSTALLATION NOTE .)
5	Short cord
