Fuel Pump Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Tip the rear seat back (LH). (See REAR SEAT BACK REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

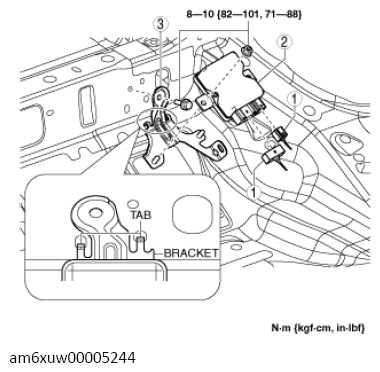

    Fig 1: Fuel Pump Control Module Components With Torque Specification
    G13721382Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Fuel pump control module connector
    2 Fuel pump control module
    3 Fuel pump control module bracket
  4. Install in the reverse order of removal.
