Control System Location Index

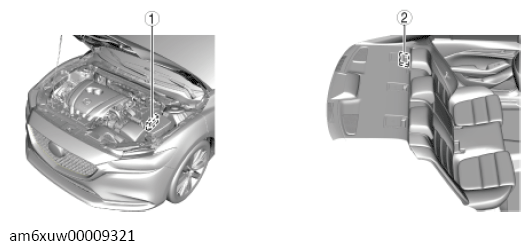

G13725866

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM LOCATION INDEX

1

Front body control module (FBCM)
(See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .)
(See FRONT BODY CONTROL MODULE (FBCM) INSPECTION .)
(See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA) .)

2

Rear body control module (RBCM)
(See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION .)
(See REAR BODY CONTROL MODULE (RBCM) INSPECTION .)
(See REAR BODY CONTROL MODULE (RBCM) BRACKET REMOVAL/INSTALLATION .)
(See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING AS-BUILT DATA) .)
(See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
