LF Control Unit Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

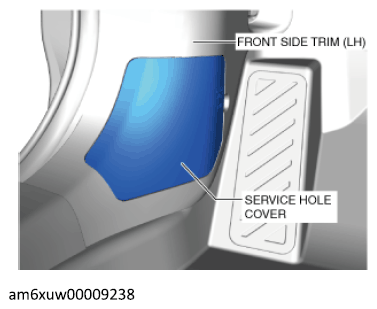

  2. Remove the service hole cover on the front side trim (LH).
    G12236265Courtesy of MAZDA MOTORS CORP.

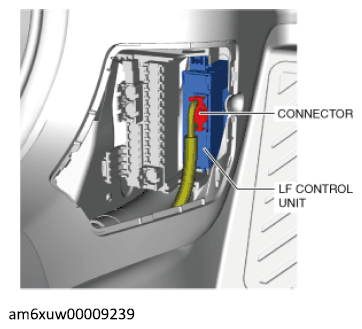

  3. Disconnect the connector.
    G12236266Courtesy of MAZDA MOTORS CORP.

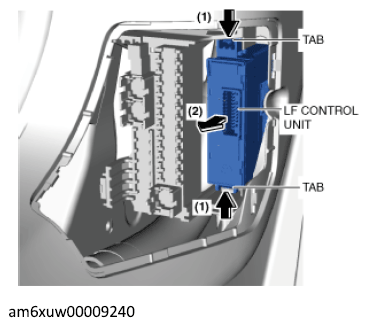

  4. Pull the LF control unit in the direction of the arrow (2) shown in the figure and remove it while pressing the tab in the direction of the arrow (1).
    G12236267Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
