Rear Power Window Motor

Fully lower the rear door glass.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Disconnect the rear power window motor connector.

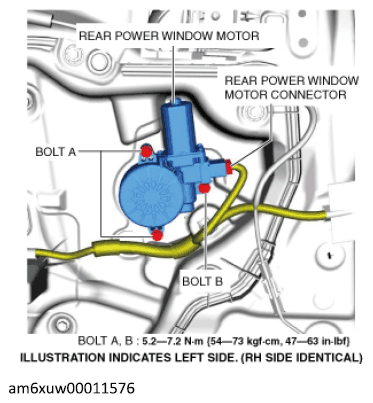

Fig 1: Rear Power Window Motor Bolts A And Bolts B With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove bolts A.
Remove bolt B.
Remove the rear power window motor.
Install in the reverse order of removal.

NOTE:

When installing the power window motor to the power window regulator drum, the drum housing tab may come off the door unit. If this happens, remove the rear door speaker, insert your hand in the rear door speaker installation hole, connect the drum housing tabs, and while supporting the drum housing, install the power window motor to the drum.
