Slide Motor Inspection
WARNING:
- Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Service Information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
CAUTION:
- When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
NOTE:
- When removing the front seat from the vehicle or putting it back in, it can be performed easier by removing the headrest.
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Disconnect the slide motor connector.

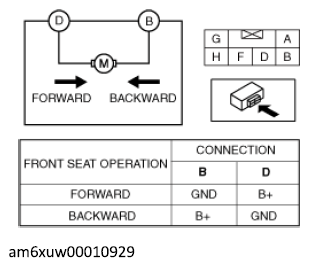

- Apply battery positive voltage to the slide motor terminals and inspect the front seat operation.
- If not as specified, replace the front seat cushion frame/adjuster unit. (See FRONT SEAT CUSHION FRAME/ADJUSTER UNIT REMOVAL/INSTALLATION .)
