Outer Mirror Glass Installation

NOTE:

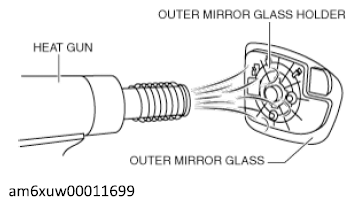

Installation of the outer mirror glass can be facilitated by heating the outer mirror glass holder to approx.50°C {90°F} to 60°C {108°F}degrees using a heat gun.
Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F}degrees could deform it.

Courtesy of MAZDA MOTORS CORP.

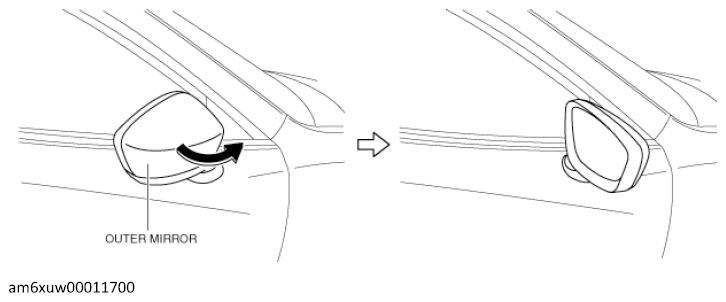

To facilitate installation of the outer mirror glass, orient the outer mirror in the direction of arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Courtesy of MAZDA MOTORS CORP.

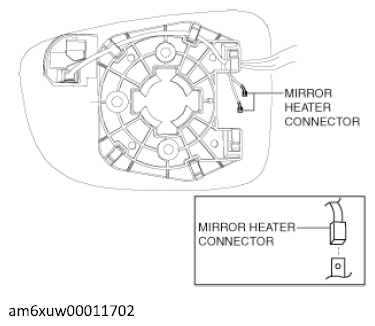

Connect the mirror heater connectors. (with heated outer mirror)

Courtesy of MAZDA MOTORS CORP.

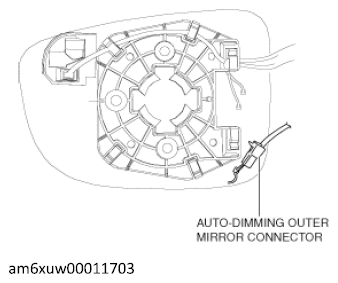

Connect the auto-dimming outer mirror connector. (with auto-dimming outer mirror)

Courtesy of MAZDA MOTORS CORP.

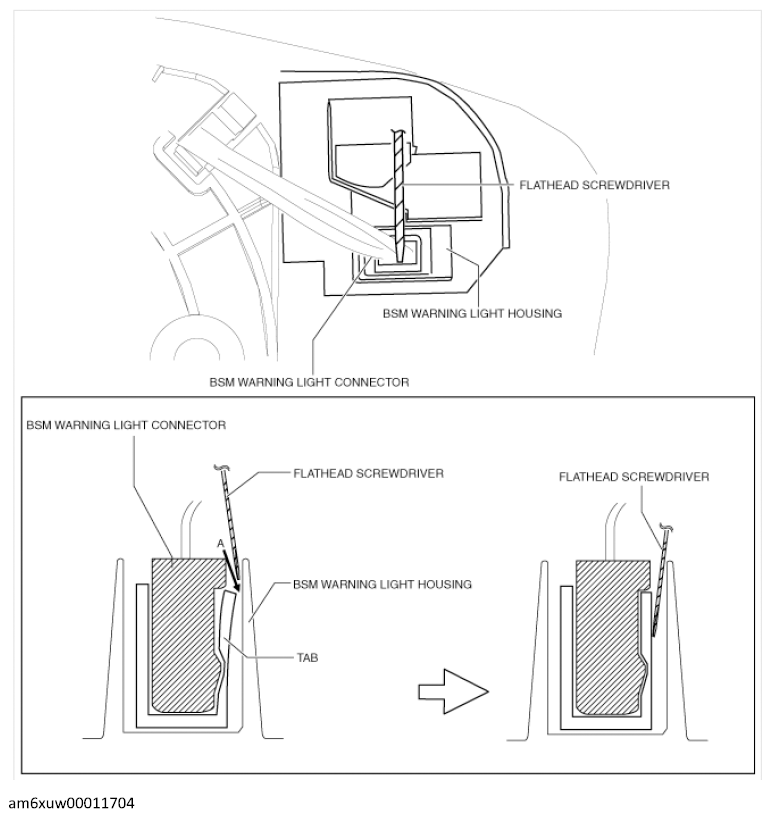

Connect the blind spot monitoring (BSM) warning light connector. (with blind spot monitoring system)
CAUTION:
- Lightly pull the BSM warning light connector and verify that the BSM warning light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector. (with blind spot monitoring system)
Courtesy of MAZDA MOTORS CORP.

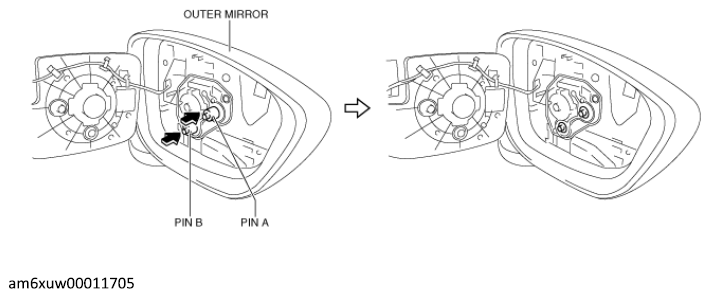

Press in outer mirror pins A and B in the direction of the arrows shown in the figure.

Courtesy of MAZDA MOTORS CORP.

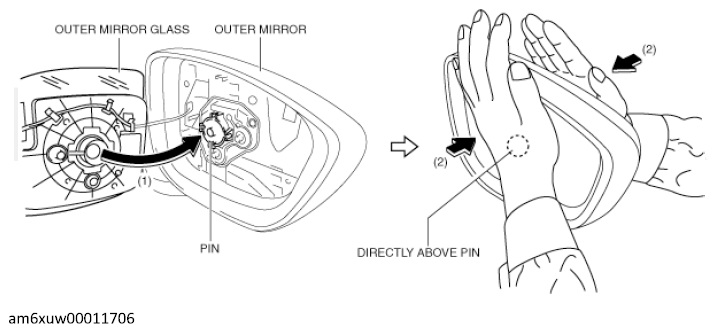

Align the outer mirror glass with the outer mirror in the direction of arrow (1) shown in the figure and while pressing in the direction of arrows (2), install the pin.
CAUTION:
- If the outer mirror moves when installing the outer mirror glass, the stay could be damaged. When installing the outer mirror glass, use both hands to press together the outer mirror glass and outer mirror.
Courtesy of MAZDA MOTORS CORP.

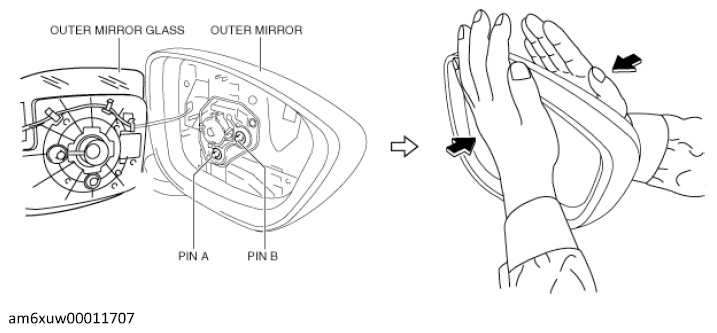

Install pins A and B in the same way as in Step 7.

Courtesy of MAZDA MOTORS CORP.
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
